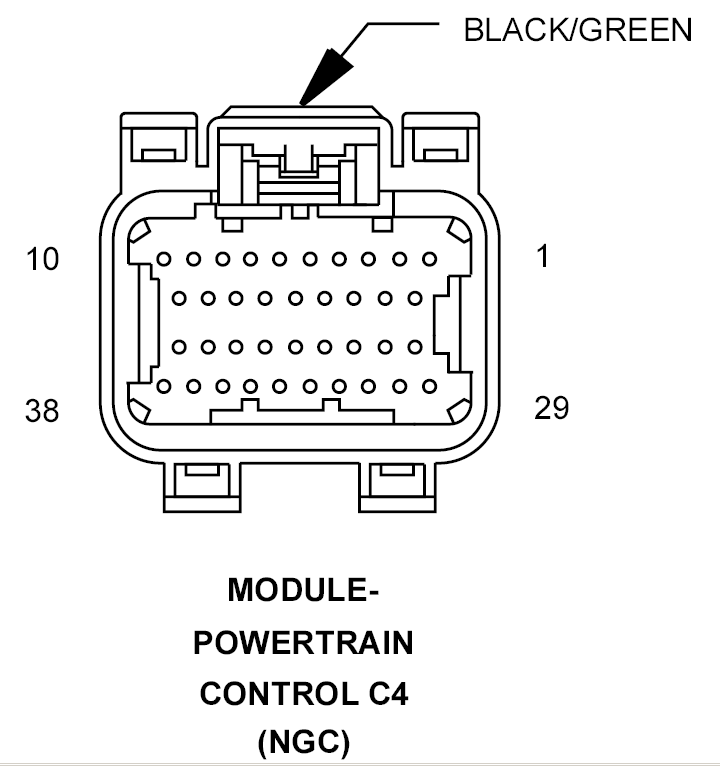

Powertrain Control Module (NGC) Connector End View (C4)

MODULE-POWERTRAIN CONTROL C4 - BLACK/GREEN 38-WAY (NGC)

Courtesy of CHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	T60 18BR	OD SOLENOID CONTROL
2	T59 18PK	UD SOLENOID CONTROL (2.4L EXCEPT TURBO)
2	T59 18PK/BK	UD SOLENOID CONTROL (2.4L TURBO)
3	-	-
4	-	-
5	-	-
6	T19 18WT	2-4 SOLENOID CONTROL
7	-	-
8	-	-
9	-	-
10	T20 18LB	L/R SOLENOID CONTROL
11	T118 18DG/WT	PRESSURE CONTROL SOLENOID CONTROL
12	Z133 16BK/YL	GROUND
13	Z132 16BK/YL	GROUND
14	Z132 16BK/RD	GROUND
15	T1 18LG/BK	TRS T1 SENSE
16	T3 18VT	TRS T3 SENSE
17	-	-
18	T15 20LG	TRANSMISSION CONTROL
19	T16 16RD	TRANSMISSION CONTROL OUTPUT
20	-	-
21	-	-
22	T9 18OR/BK	OD PRESSURE SWITCH SENSE
23	-	-
24	-	-
25	-	-
26	-	-
27	T41 18BK/WT	TRS T41 SENSE
28	T16 16RD	TRANSMISSION CONTROL OUTPUT
29	T50 18DG	L/R PRESSURE SWITCH SENSE
30	T47 18YL/BK	2-4 PRESSURE SWITCH SENSE
31	T38 18YL/BR	LINE PRESSURE SENSOR SIGNAL
32	T14 20LG/WT	OUTPUT SPEED SENSOR SIGNAL
33	T52 20RD/BK	INPUT SPEED SENSOR SIGNAL
34	T13 20DB/BK	SPEED SENSOR GROUND
35	T54 18VT/PK	TRANSMISSION TEMPERATURE SENSOR SIGNAL
36	-	-
37	T42 18VT/WT	TRS T42 SENSE
38	T16 18YL/OR	TRANSMISSION CONTROL OUTPUT
