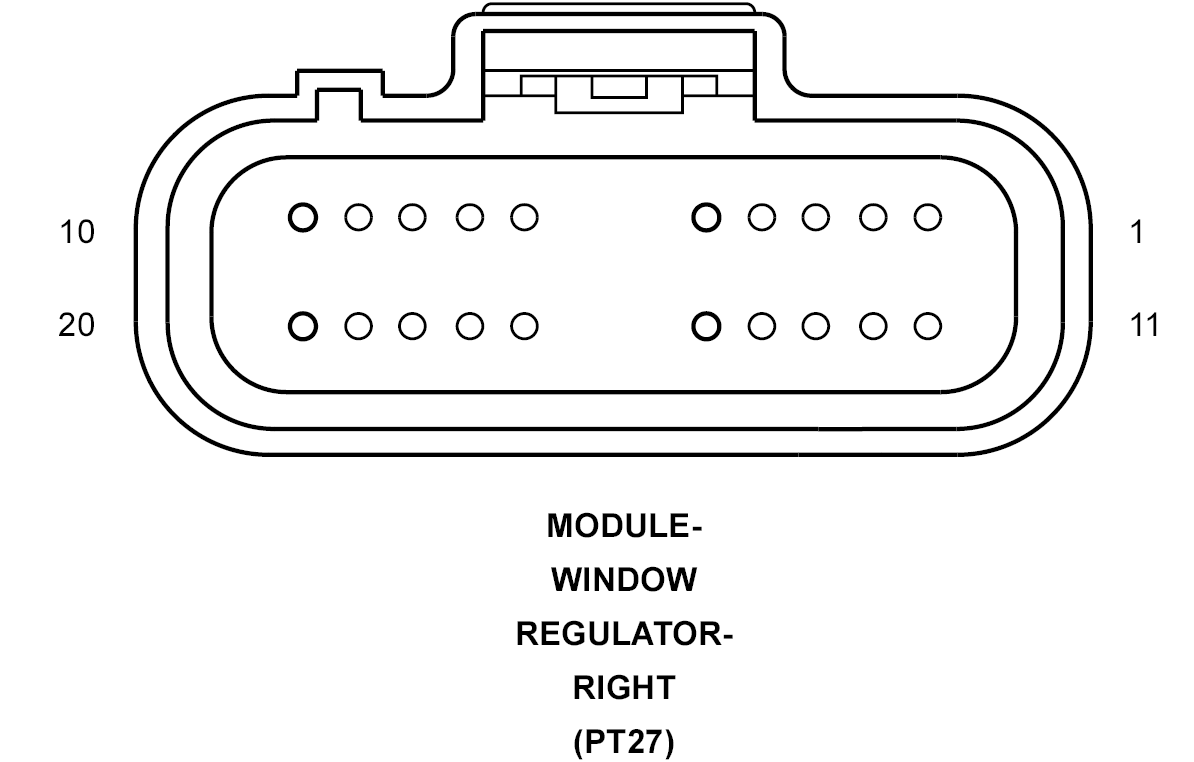

Right Window Regulator Module (Convertible) Connector End View
MODULE-WINDOW REGULATOR-RIGHT - 20-WAY (PT27)
| CAV | CIRCUIT | FUNCTION |
| 1 | Z906 16BK | GROUND |
| 2 | - | - |
| 3 | - | - |
| 4 | - | - |
| 5 | Z909 20BK | GROUND |
| 6 | Q14 16OR/GY | RIGHT REAR WINDOW DRIVER (UP) |
| 7 | Q24 16OR/DG | RIGHT REAR WINDOW DRIVER (DOWN) |
| 8 | - | - |
| 9 | - | - |
| 10 | A937 16RD | FUSED B(+) |
| 11 | Z906 16BK | GROUND |
| 12 | - | - |
| 13 | G74 20TN/RD | RIGHT FRONT DOOR AJAR SWITCH SENSE |
| 14 | Q58 20OR/YL | RIGHT WINDOW DROP SWITCH SENSE |
| 15 | D55 20WT/OR | CAN B BUS (+) |
| 16 | D54 20WT | CAN B BUS (-) |
| 17 | - | - |
| 18 | - | - |
| 19 | - | - |
| 20 | A937 16RD | FUSED B(+) |
