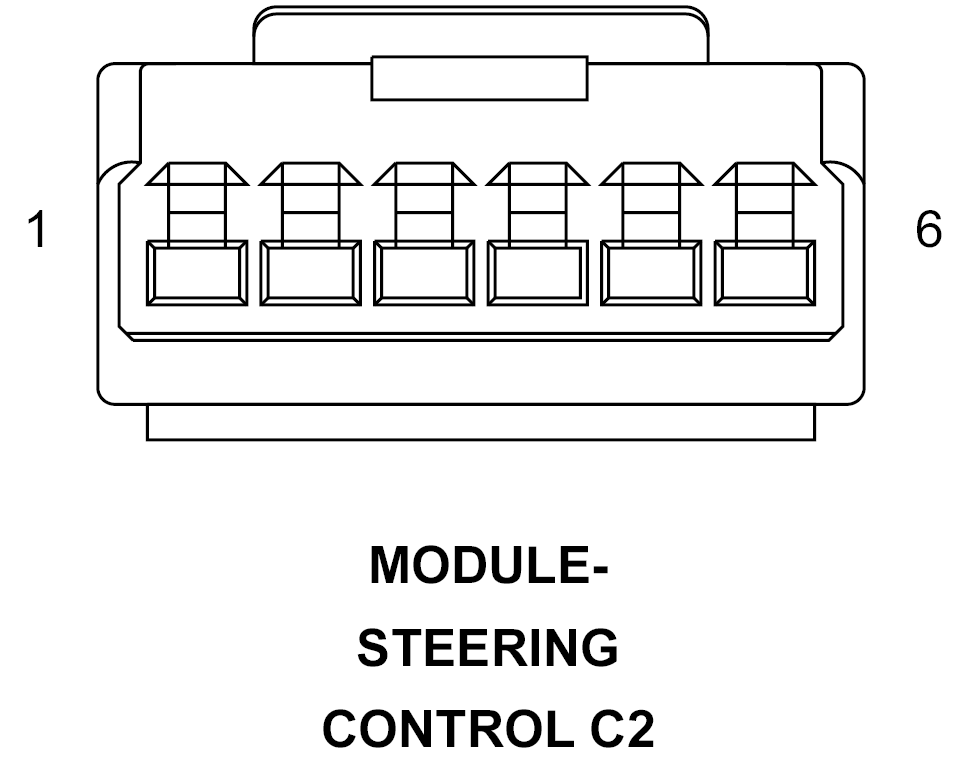

Steering Control Module Connector End View (C2)
MODULE-STEERING CONTROL C2 - 6-WAY
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
- |
- |
| 2 |
Y13 20YL/BK |
RADIO CONTROL RETURN (PT27) |
| 2 |
Y13 20VT/BK |
RADIO CONTROL RETURN (PT44) |
| 3 |
X3 20DG/VT |
HORN SWITCH SENSE |
| 4 |
V72 20OR/VT |
S/C SWITCH NO. 2 SIGNAL |
| 5 |
V937 20VT/BR |
S/C SWITCH RETURN |
| 6 |
V71 20VT/OR |
S/C SWITCH NO. 1 SIGNAL |
