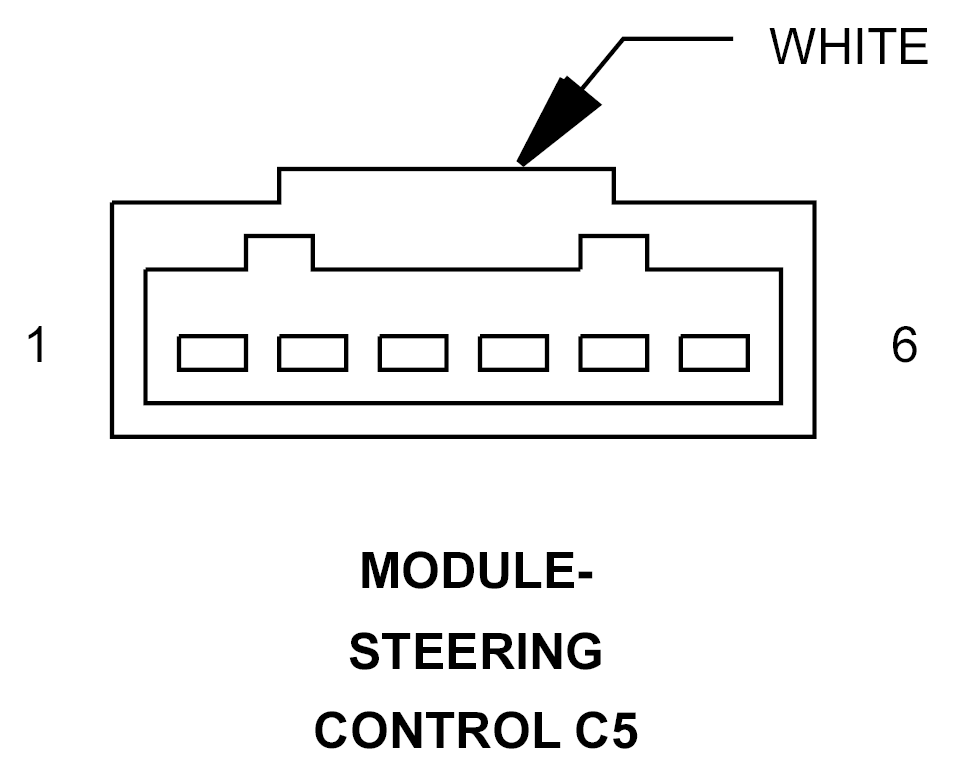

Steering Control Module Connector End View (C5)

MODULE-STEERING CONTROL C5 - WHITE 6-WAY

Courtesy of CHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	-	-
2	X3 20BK	HORN SWITCH SENSE
3	Y13 20BK	RADIO CONTROL RETURN
4	V72 20OR/VT	S/C SWITCH NO. 2 SIGNAL
5	V71 20RD	S/C SWITCH NO. 1 SIGNAL
6	V937 20GY	S/C SWITCH RETURN
