CABLE, Speed Control: Installation: Installation

Fig 1: Removing/Installing Cable Retaining Clip

Courtesy of CHRYSLER LLC

1 - HAIRPIN CLIP

1. Install the cable.
2. Install the retaining clip holding cable to servo .

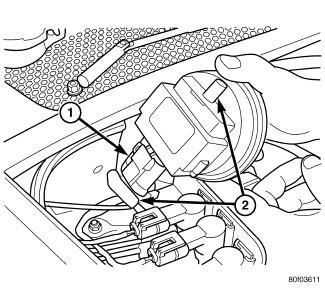

   Fig 2: Identifying Vacuum Line, Nipple, & Electrical Connector

   Courtesy of CHRYSLER LLC

   1 - Electrical Connector

   2 - Vacuum Line and Nipple

3. Install the vacuum line to the speed control servo nipple .
4. Connect and Lock the electrical connector to the speed control servo .

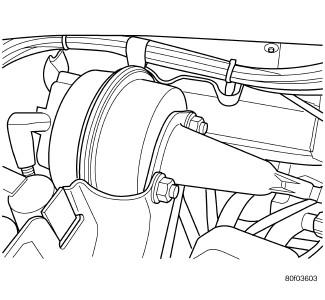

   Fig 3: Identifying Speed Control Servo Mounting Nuts

   Courtesy of CHRYSLER LLC
5. Install the speed control servo to the mounting bracket.
6. Install the 2 nuts to the speed control servo studs and tighten to 7 N.m (60 in. lbs.).

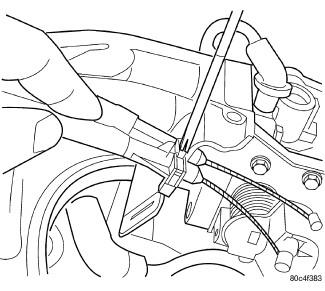

   Fig 4: Identifying Throttle Cable Bracket Retaining Tabs

   Courtesy of CHRYSLER LLC
7. Install speed control cable to throttle cable bracket .
8. Install the speed control cable to the throttle body lever.
   Fig 5: Identifying Throttle Control Shield

   Courtesy of CHRYSLER LLC
9. Install the throttle control shield .

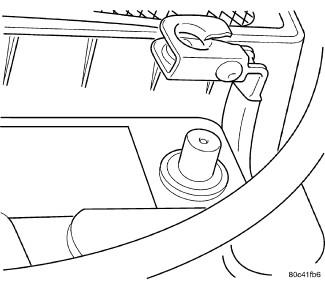

   Fig 6: Removing/Installing Negative Battery Cable

   Courtesy of CHRYSLER LLC
10. Connect the negative battery cable.
