P1189-Tip Sensor Circuit Low: Notes

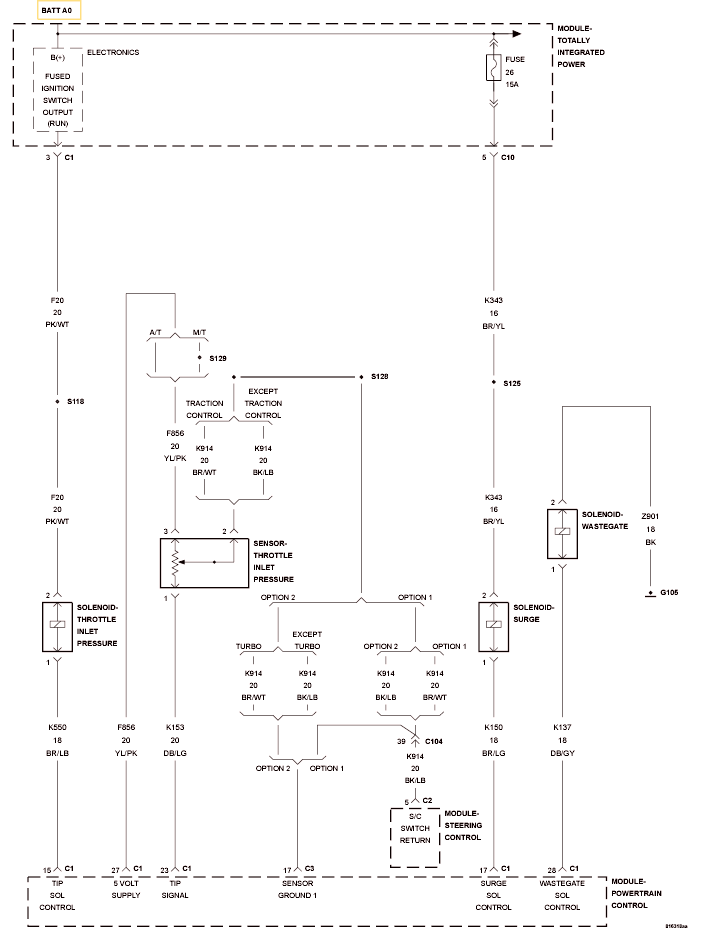

Fig 1: TIP Sensor Solenoid Circuit

GC0117128

Courtesy of CHRYSLER LLC
