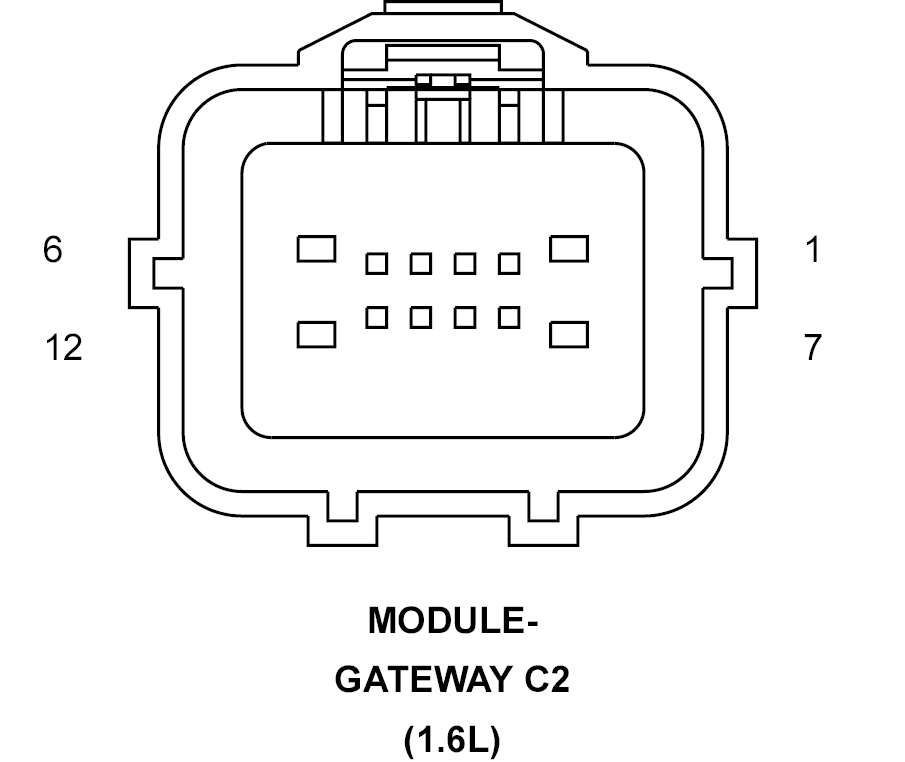

Gateway Module (1.6L) Connector End View (C2)

MODULE-GATEWAY C2 - 12-WAY (1.6L)

Courtesy of CHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	K125 18BR/DG	GEN FIELD CONTROL
2	-	-
3	F961 20PK/LB	IGNITION SWITCH OUTPUT (START)
4	T141 20YL/OR	CLUTCH INTERLOCK SWITCH SIGNAL
5	-	-
6	C18 20LB/BR	A/C SELECT
7	T12 20DG/YL	CLUTCH INTERLOCK SWITCH STATUS
8	-	-
9	C221 20DB/LG	A/C HIGH PRESSURE SIGNAL
10	-	-
11	-	-
12	Z902 18BK	GROUND
