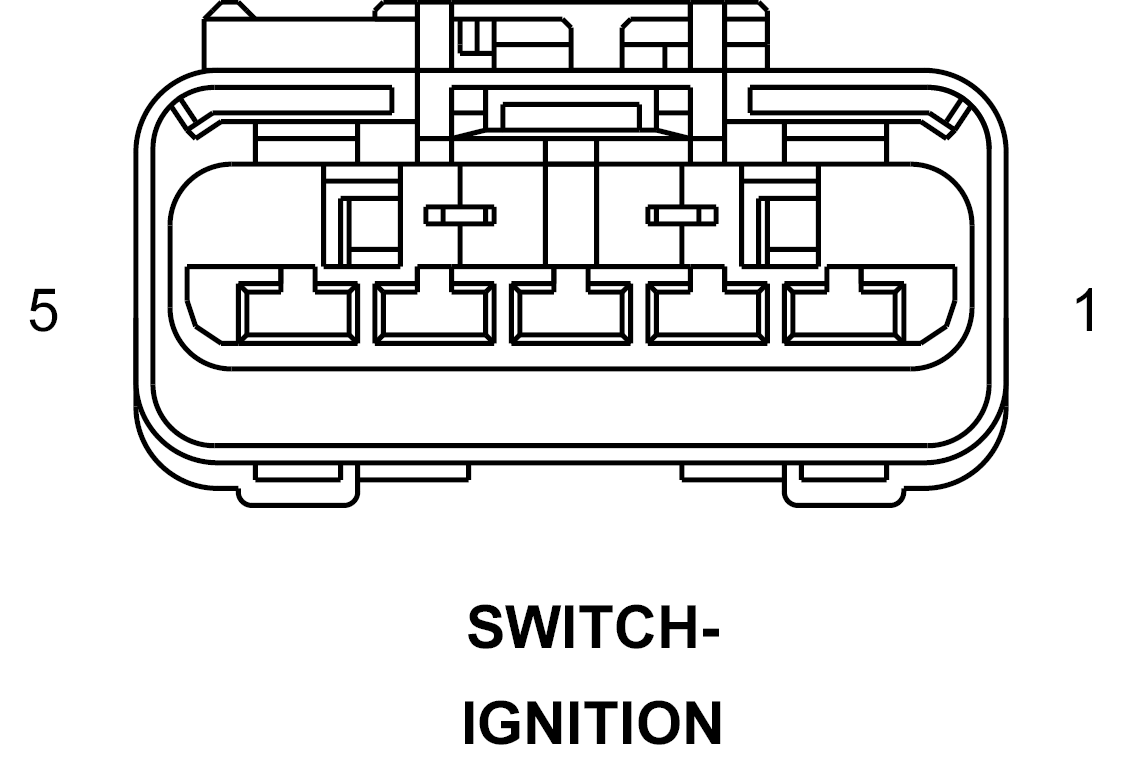

Ignition Switch Connector End View

SWITCH-IGNITION - 5-WAY

Courtesy of CHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	G900 20VT/OR	IGNITION SWITCH SENSE RETURN
2	G20 20VT/BR	IGNITION SWITCH SENSE
3	F20 20PK/WT	IGNITION SWITCH OUTPUT (RUN-START)
4	F961 20PK/LB	IGNITION SWITCH OUTPUT (START)
5	A952 20RD	FUSED B(+)
