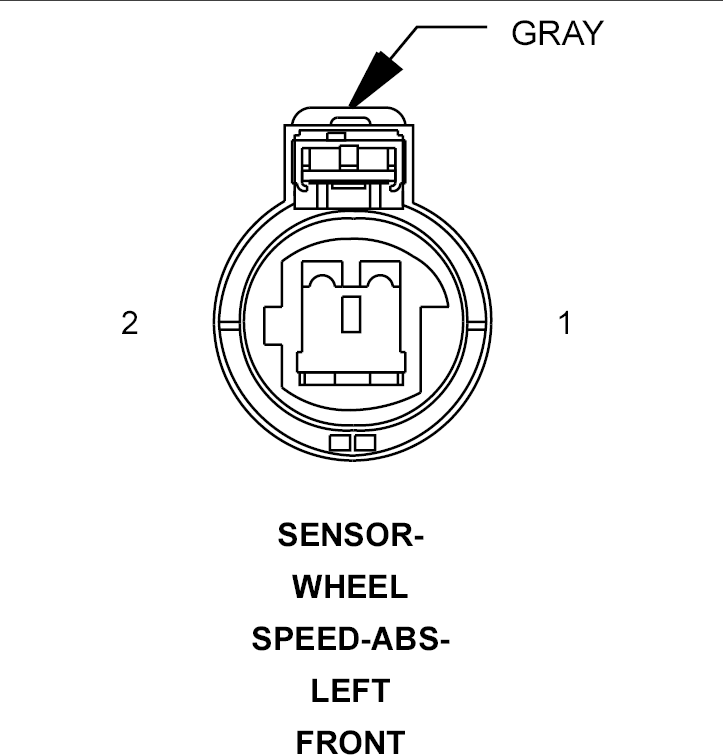

Left Front Wheel Speed Sensor Connector End View
SENSOR-WHEEL SPEED-ABS-LEFT FRONT - GRAY 2-WAY
Courtesy of CHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
B9 20RD
LEFT FRONT WHEEL SPEED SENSOR 12 VOLT SUPPLY
2
B8 20RD/DB
LEFT FRONT WHEEL SPEED SENSOR SIGNAL
Courtesy of CHRYSLER CORP.
