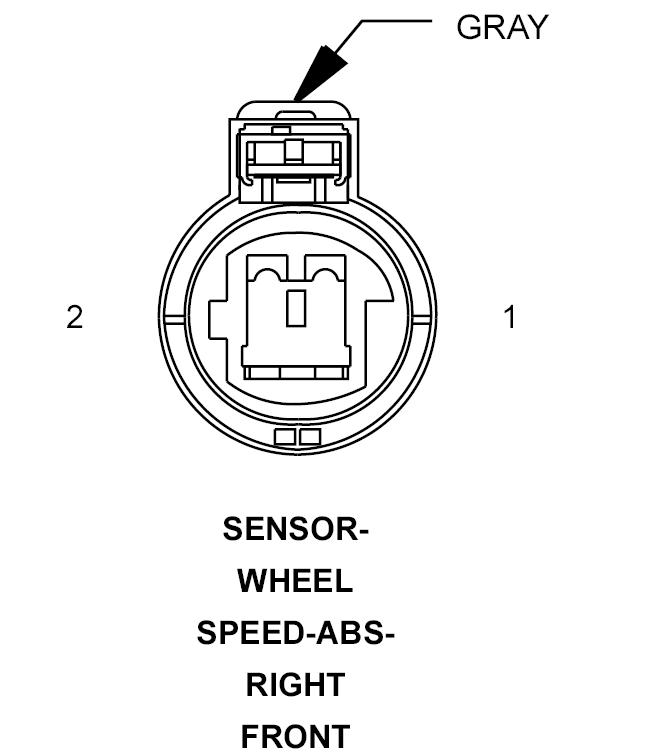

Right Front Wheel Speed Sensor Connector End View
SENSOR-WHEEL SPEED-ABS-RIGHT FRONT - GRAY 2-WAY
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
B7 20WT |
RIGHT FRONT WHEEL SPEED SENSOR 12 VOLT SUPPLY |
| 2 |
B6 20WT/DB |
RIGHT FRONT WHEEL SPEED SENSOR SIGNAL |
