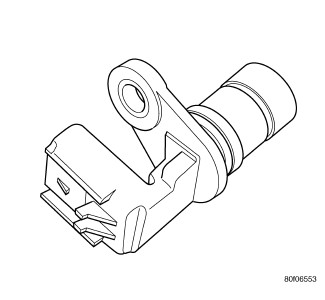

Crankshaft Position Sensor - Installation

INSTALLATION





1. Check O-ring for damage and lubricate the O-ring with engine oil before installing sensor.
2. Use a twisting motion when installing the sensor.
3. Install and tighten the crankshaft position sensor bolt and tighten to 9 Nm (80 ±15 in. lbs.).
4. Connect and lock the electrical connector to the crankshaft position sensor.
5. Lower vehicle.
6. Connect the negative battery cable.
