1/1 Upstream

1/1 UPSTREAM - 2.4L

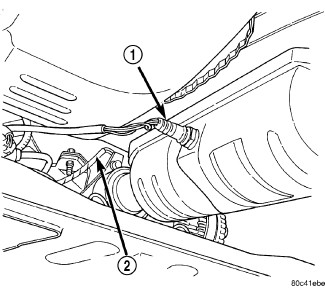

1. Remove the air cleaner lid and makeup air hose.
2. Remove the negative battery cable.
3. Disconnect electrical connector from sensor.
4. Remove sensor using an oxygen sensor special tool C-4907.
