C1038-Rear Wheel Speed Sensor Circuit Low: Notes

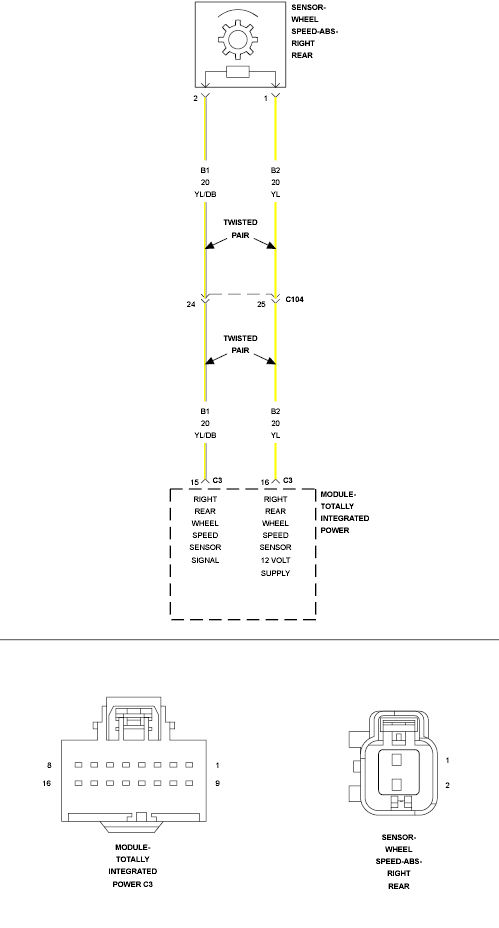

Fig 1: Rear Wheel Speed Sensor Circuit

GC0123564

Courtesy of CHRYSLER LLC
