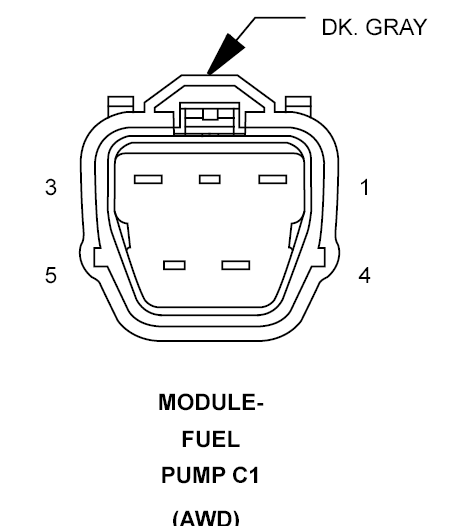

Fuel Pump Module (AWD) Connector End View (C1)
MODULE-FUEL PUMP C1 - DK. GRAY 5 WAY (AWD)
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
Z916 16BK |
GROUND |
| 2 |
N4 20DB/WT |
FUEL LEVEL SIGNAL 1 |
| 3 |
- |
- |
| 4 |
Z916 16BK |
GROUND |
| 5 |
N1 16DB/OR |
FUEL PUMP CONTROL OUTPUT |
