P0480-Cooling Fan 1 Control Circuit: Notes

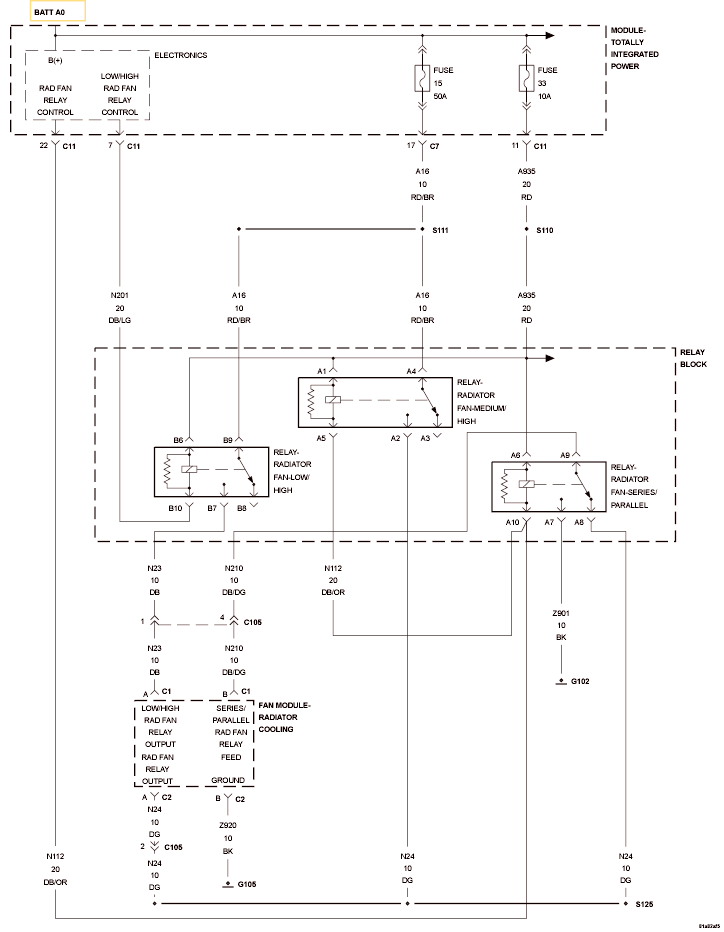

Fig 1: Cooling Fan Circuit
Courtesy of CHRYSLER LLC
Courtesy of CHRYSLER LLC
