Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

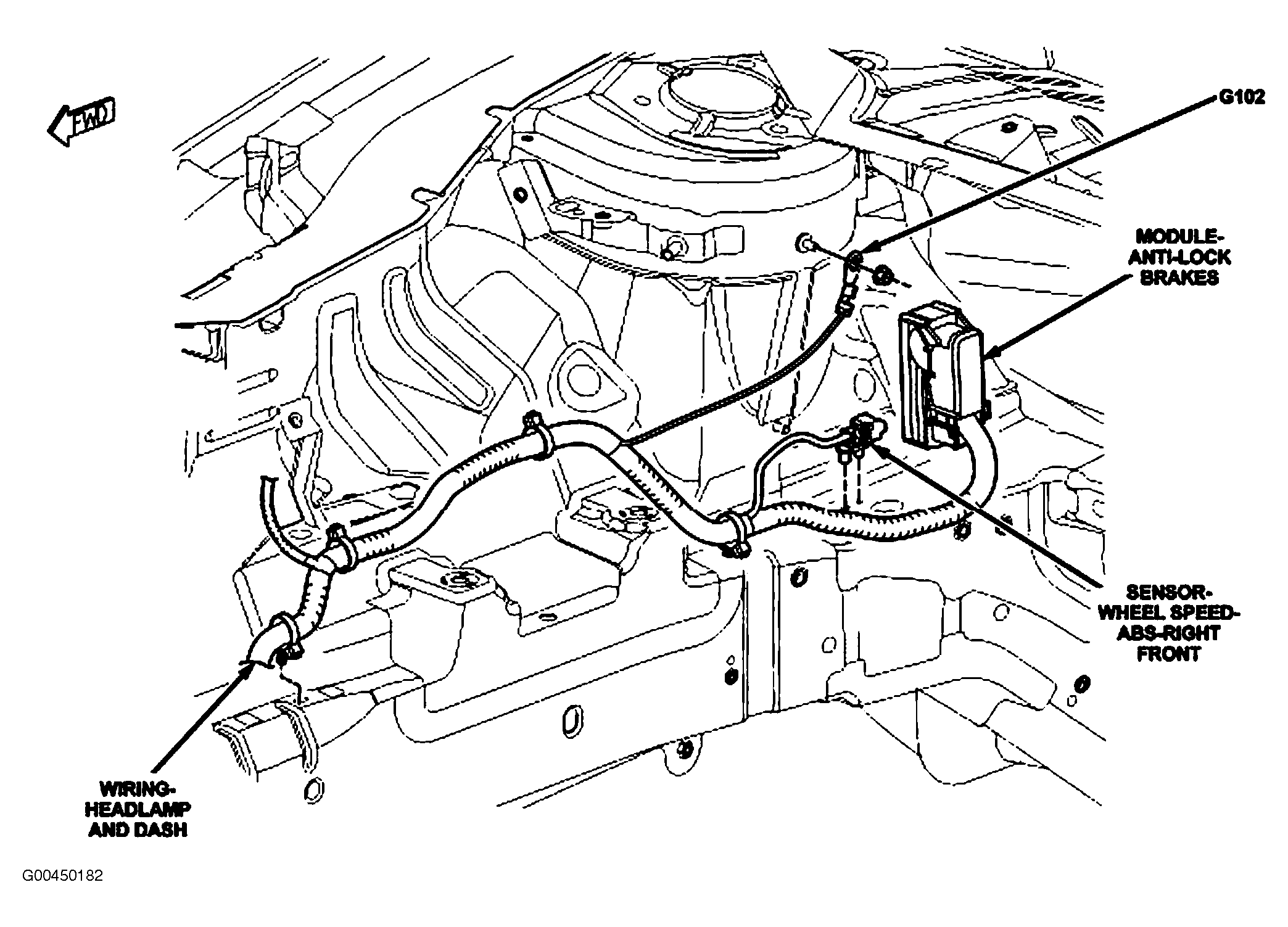

| Anti-Lock Brake Module | Lower right rear of engine compartment. See Figure. |

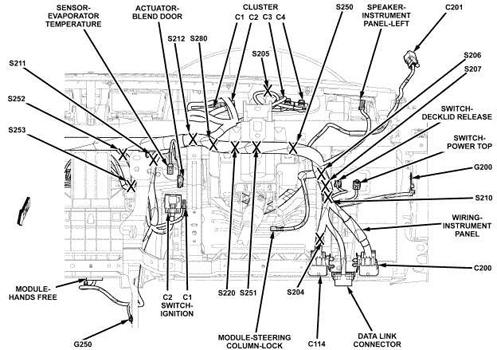

| Hands Free Module | Center of dash. See Figure. |
| Headlight Leveling Module (Left/Right) | Rear of respective headlight assembly. |

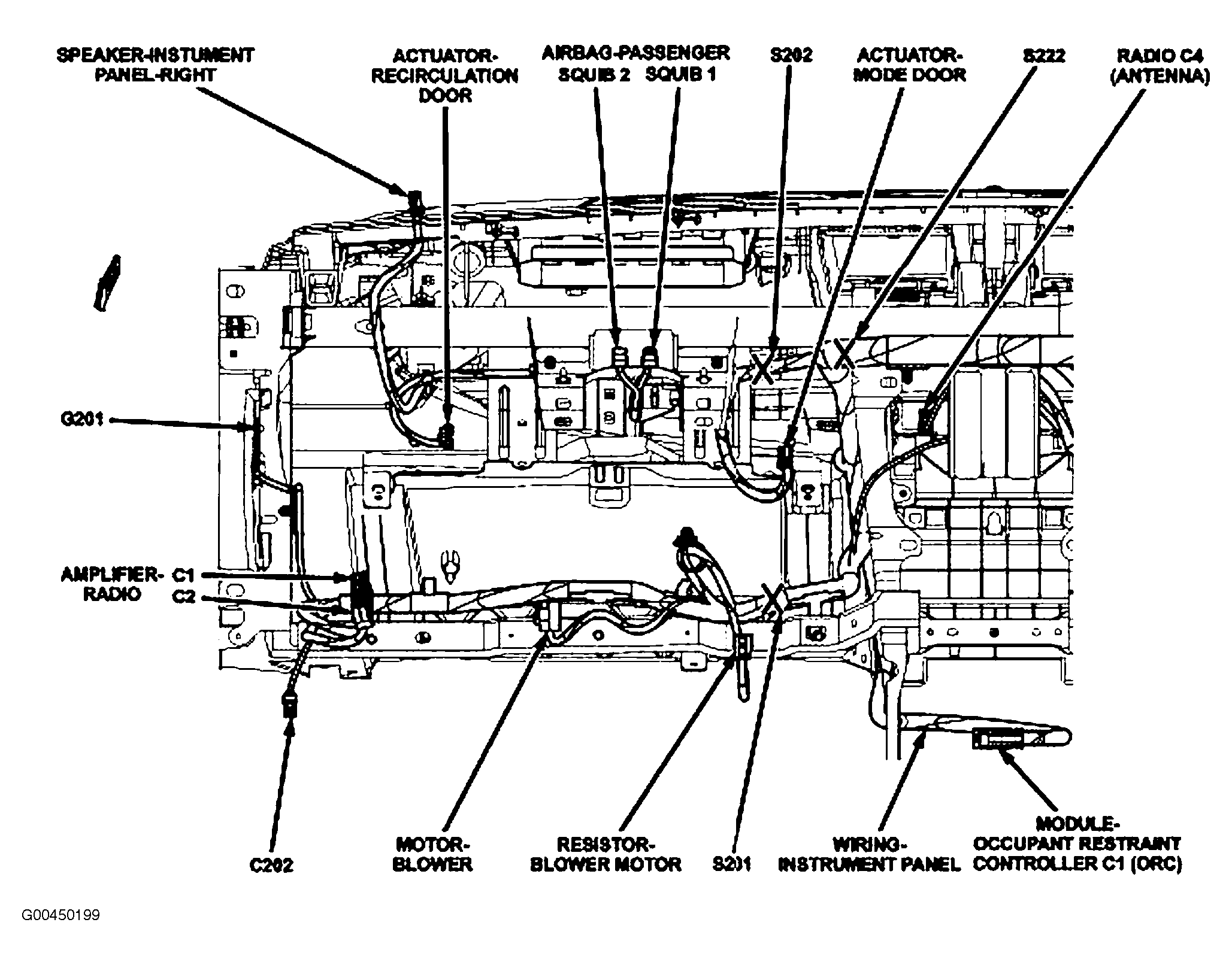

| Occupant Restraint Controller Module | Center of dash. See Figure. |

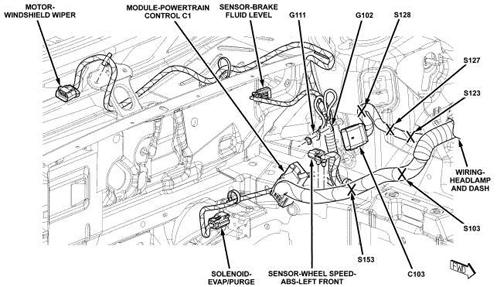

| Powertrain Control Module (2.4L) | Left rear of engine compartment. See Figure. |

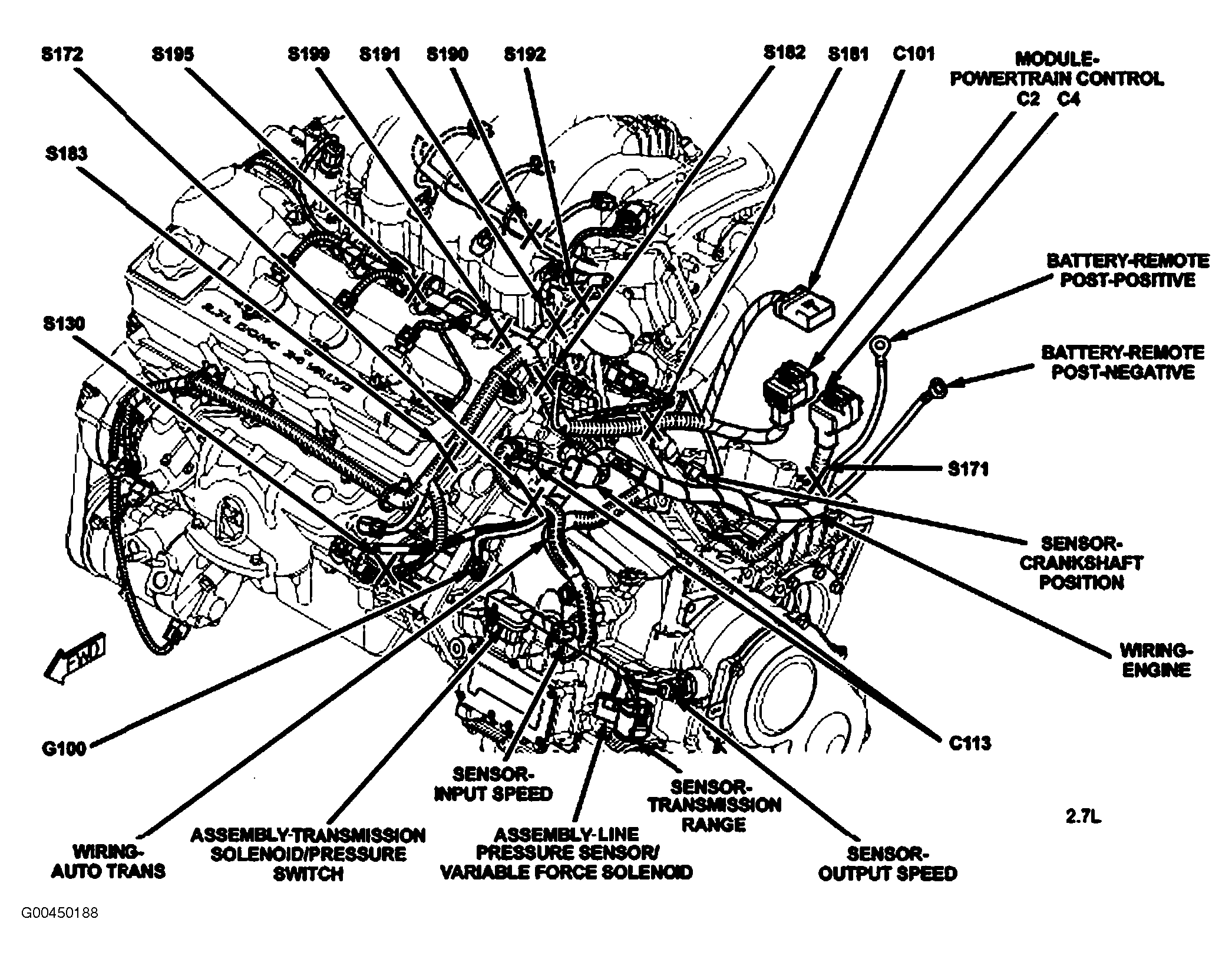

| Powertrain Control Module (2.7L) | Left rear of engine compartment. See Figure. |

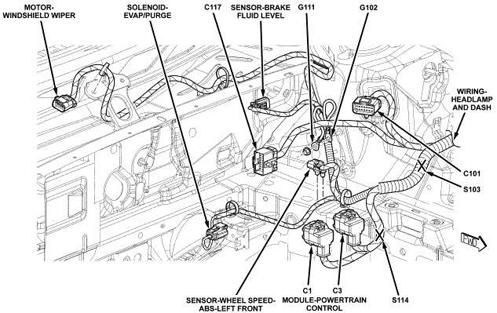

| Powertrain Control Module (3.5L) | Left rear of engine compartment. See Figure. |

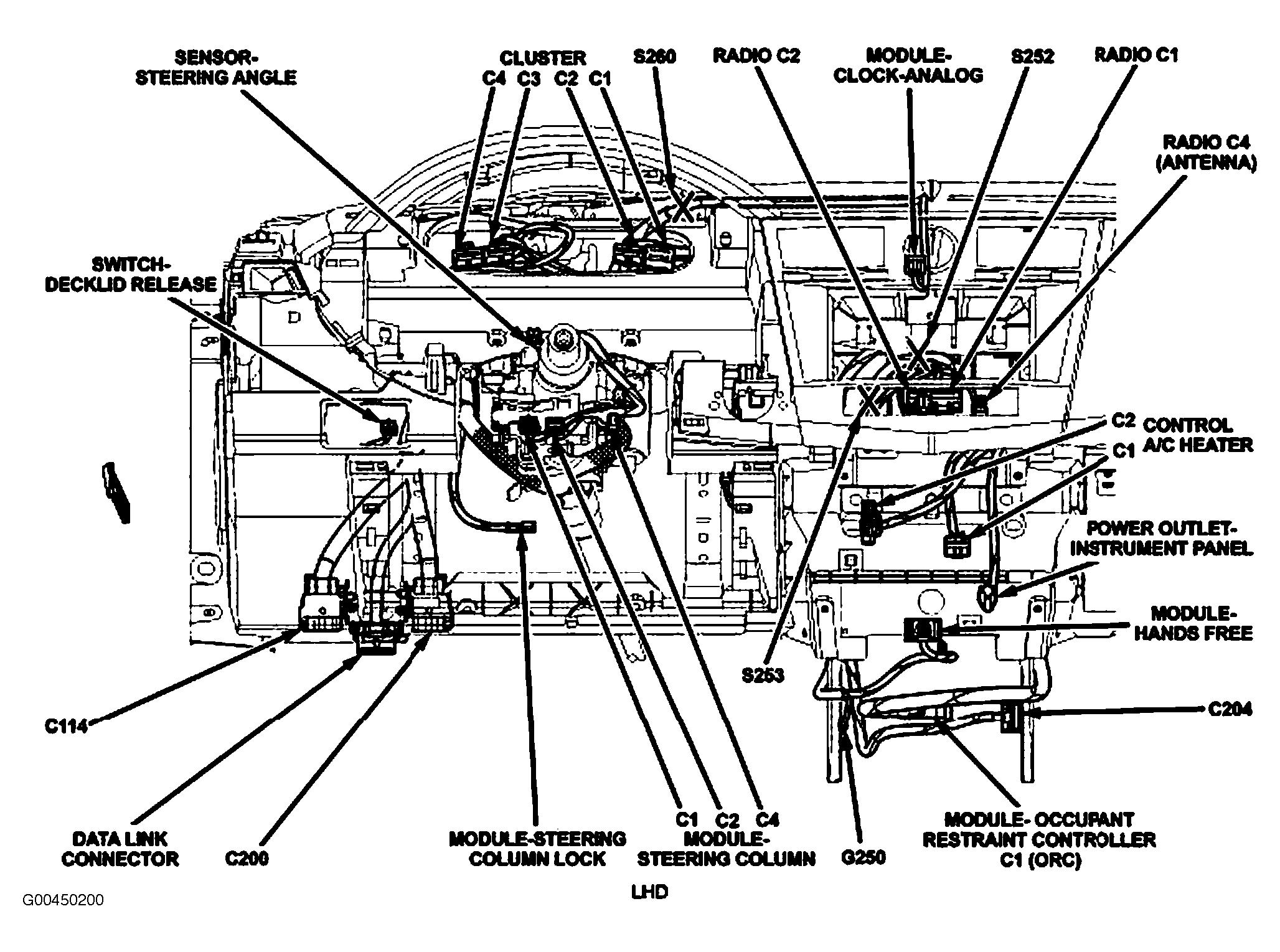

| Steering Column Module | Steering column. See Figure. |

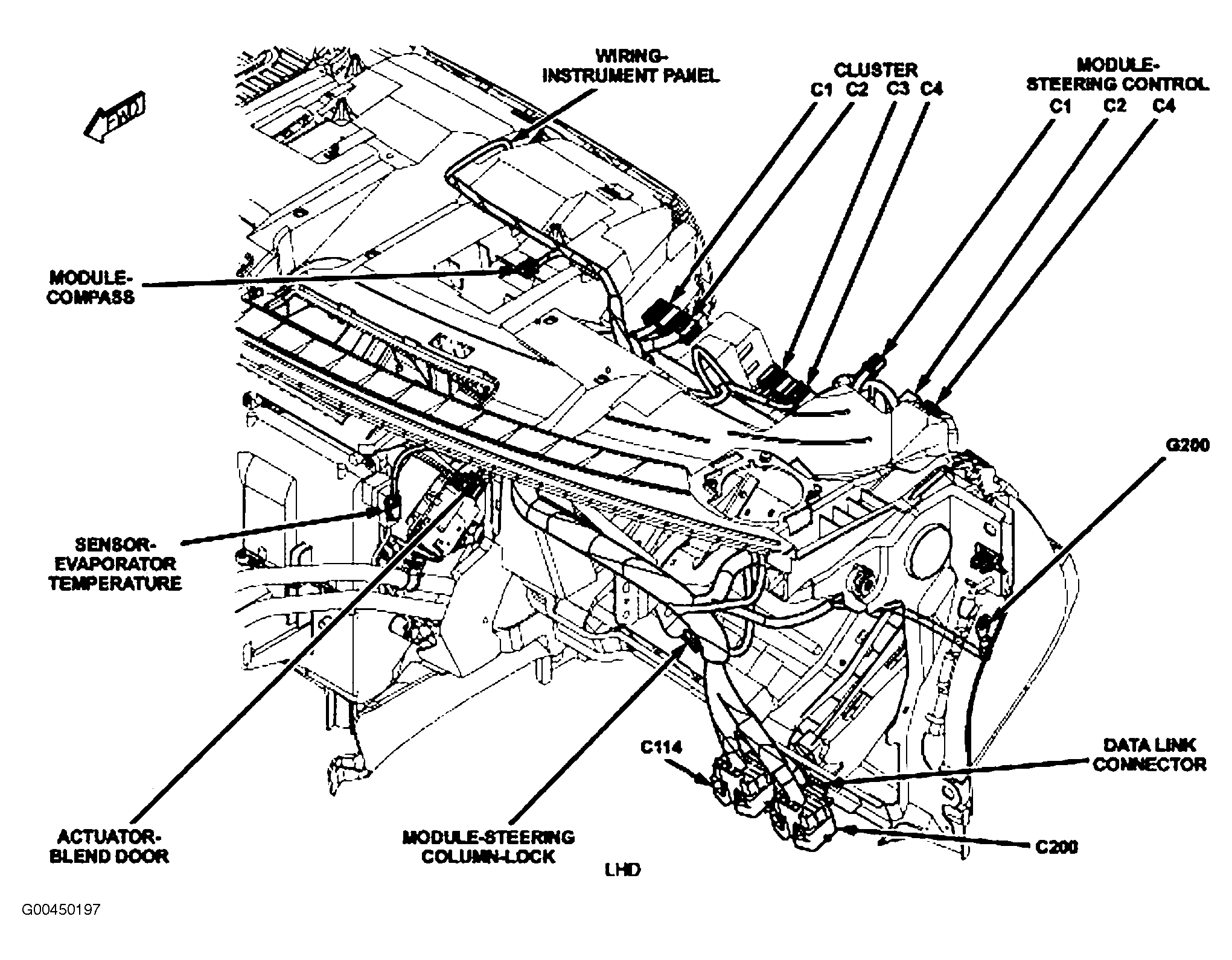

| Steering Control Module | Steering column. See Figure. |
