Diagnostic Test

OXYGEN SENSOR 1/2 VOLTAGE
1. Start the engine and allow it to reach operating temperature.
  WARNING: When the engine is operating, do not stand in direct line with the fan. Do not put your hands near the pulleys, belts or fan. Do not wear loose clothing. Failure to follow these instructions may result in possible serious or fatal injury.
2. With a scan tool, monitor the 1/2 O2 Sensor Volts.
  Is the voltage greater than 3.9 volts?

  Yes
  - Go to step 2
  No
  - Perform the CHECKING FOR AN INTERMITTENT DTC diagnostic procedure. See DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure .
(K141) O2 1/2 SIGNAL CIRCUIT SHORTED TO VOLTAGE

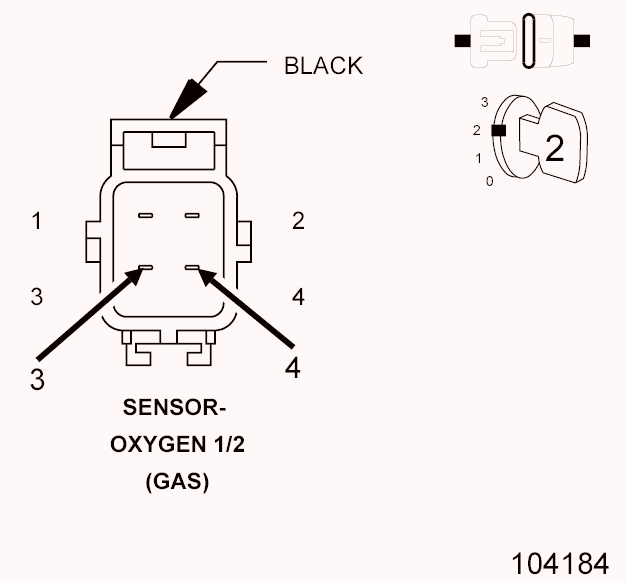

Fig 1: Checking O2 Sensor Circuit
Courtesy of CHRYSLER LLC
1. Turn the ignition off.
2. Disconnect the Oxygen Sensor 1/2 harness connector.
3. Turn the ignition on.
4. Measure the voltage on the (K141) O2 1/2 Signal circuit in the Oxygen Sensor 1/2 harness connector.
  NOTE: Measure the voltage in reference to ground, not the (K904) O2 1/2 Return circuit.

  Is the voltage above 5.02 volts?

  Yes
  - Repair the (K141) O2 1/2 Signal circuit for a short to voltage.
  - Perform the PCM VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure .
  No
  - Go to step 3
(K904) O2 1/2 RETURN CIRCUIT SHORTED TO VOLTAGE

Fig 2: Checking O2 Sensor Circuit
Courtesy of CHRYSLER LLC
1. Turn the ignition off.
2. Disconnect the Powertrain Control Module (PCM) harness connector.
3. Turn the ignition on.
4. Measure the voltage on the (K904) O2 1/2 Return circuit in the Oxygen Sensor 1/2 harness connector.
  Is there any voltage present?

  Yes
  - Repair the (K904) O2 1/2 Return circuit for a short to voltage.
  - Perform the PCM VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure .
  No
  - Go to step 4
(K141) O2 1/2 SIGNAL CIRCUIT SHORTED TO THE (K299) O2 1/2 HEATER CONTROL CIRCUIT

Fig 3: Checking O2 Signal Circuit
Courtesy of CHRYSLER LLC
1. Turn the ignition off.
2. Measure the resistance between the (K141) O2 1/2 Signal circuit and the (K299) O2 1/2 Heater Control circuit in the Oxygen Sensor 1/2 harness connector.
  Is the resistance below 100.0 Ohms?

  Yes
  - Repair the (K141) O2 1/2 Signal circuit for a short to the (K299) O2 1/2 Heater Control circuit.
  - Perform the PCM VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure .
  No
  - Go to step 5
OXYGEN SENSOR 1/2 VOLTAGE

Fig 4: Checking O2 Sensor Circuit
Courtesy of CHRYSLER LLC
1. Turn the ignition off.
2. Connect the Powertrain Control Module (PCM) harness connector.
3. Connect a jumper wire between the (K141) O2 1/2 Signal circuit and the (K904) O2 1/2 Return circuit in the Oxygen Sensor 1/2 harness connector.
4. Turn the ignition on.
5. With a scan tool, monitor the 1/2 O2 Sensor Volts.
  Is the voltage between 2.3 and 2.7 volts with the jumper wire in place?

  Yes
  - Go to step 8
  No
  - Go to step 6
(K141) O2 1/2 SIGNAL CIRCUIT OPEN OR HIGH RESISTANCE

Fig 5: Checking O2 Sensor Circuit
Courtesy of CHRYSLER LLC
1. Turn the ignition off.
2. If necessary, remove the jumper wire from between the (K141) O2 1/2 Signal circuit and the (K904) O2 1/2 Return circuit in the Oxygen Sensor 1/2 harness connector.
3. Disconnect the Powertrain Control Module (PCM) harness connector.
  NOTE: When checking circuits at the Powertrain Control Module (PCM), be careful not to damage or distort the connector terminals. Improper measurement technique could result in poor pin to terminal contact.
4. Measure the resistance of the (K141) O2 1/2 Signal circuit between the Oxygen Sensor 1/2 harness connector to the Powertrain Control Module (PCM) harness connector.
  Is the resistance below 5.0 Ohms?

  Yes
  - Go to step 7
  No
  - Repair the (K141) O2 1/2 Signal circuit for an open circuit or high resistance.
  - Perform the PCM VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure .
(K904) O2 1/2 RETURN CIRCUIT OPEN OR HIGH RESISTANCE

Fig 6: Checking O2 Sensor Circuit
Courtesy of CHRYSLER LLC

NOTE: When checking circuits at the Powertrain Control Module (PCM), be careful not to damage or distort the connector terminals. Improper measurement technique could result in poor pin to terminal contact.
1. Measure the resistance of the (K904) O2 1/2 Return circuit between the Oxygen Sensor 1/2 harness connector to the Powertrain Control Module (PCM) harness connector.
  Is the resistance below 5.0 Ohms?

  Yes
  - Go to step 9
  No
  - Repair the (K904) O2 1/2 Return circuit for an open circuit or high resistance.
  - Perform the PCM VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure .
OXYGEN SENSOR 1/2
1. Turn the ignition off.
2. Inspect the wiring and connectors between the Oxygen Sensor 1/2 and the Powertrain Control Module (PCM).
3. Look for any chafed, pierced, pinched, or partially broken wires.
4. Look for broken, bent, pushed out or corroded terminals. Verify that there is good pin to terminal contact in the related connectors.
  Were any problems found?

  Yes
  - Repair as necessary.
  - Perform the PCM VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure .
  No
  - Replace the Oxygen Sensor 1/2 in accordance with the Service Information.
  - Perform the PCM VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure .
POWERTRAIN CONTROL MODULE (PCM)
1. Using the wiring diagram/schematic as a guide, inspect the wiring and connectors between the Oxygen Sensor 1/2 and the Powertrain Control Module (PCM).
2. Look for any chafed, pierced, pinched, or partially broken wires.
3. Look for broken, bent, pushed out or corroded terminals.
4. Perform any Technical Service Bulletins that may apply.
  Were any problems found?

  Yes
  - Repair as necessary.
  - Perform the PCM VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure .
  No
  - Replace and program the Powertrain Control Module (PCM) in accordance with the Service Information.
  - Perform the PCM VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure .
