P0202-Fuel Injector 2 Circuit Open: Notes

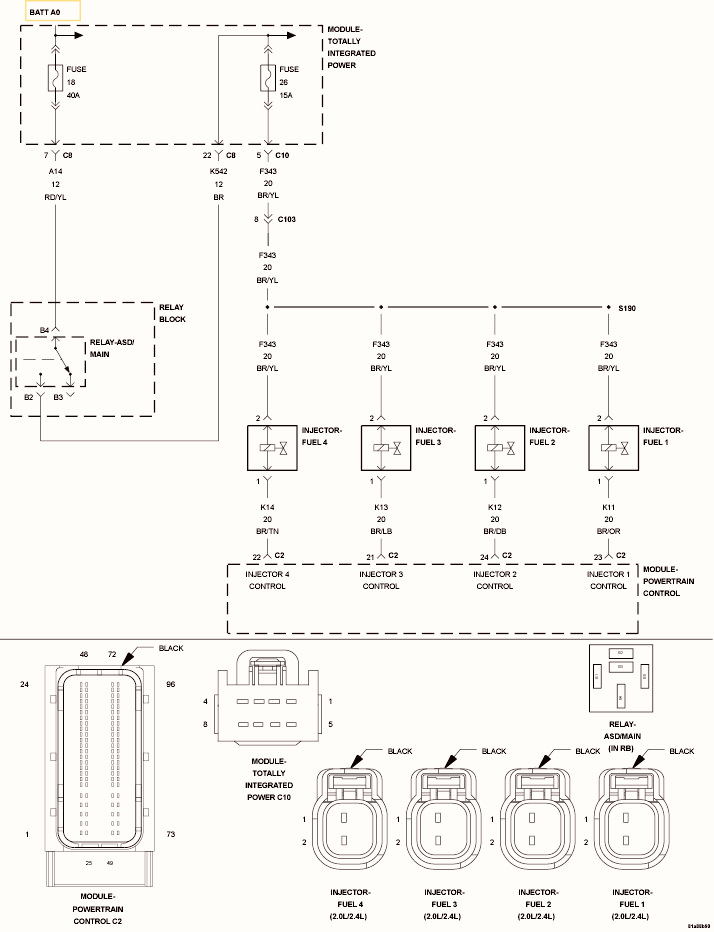

Fig 1: Fuel Injector Circuit
Courtesy of CHRYSLER LLC
Courtesy of CHRYSLER LLC
