P0532-A/C Pressure Sensor Circuit Low: Notes

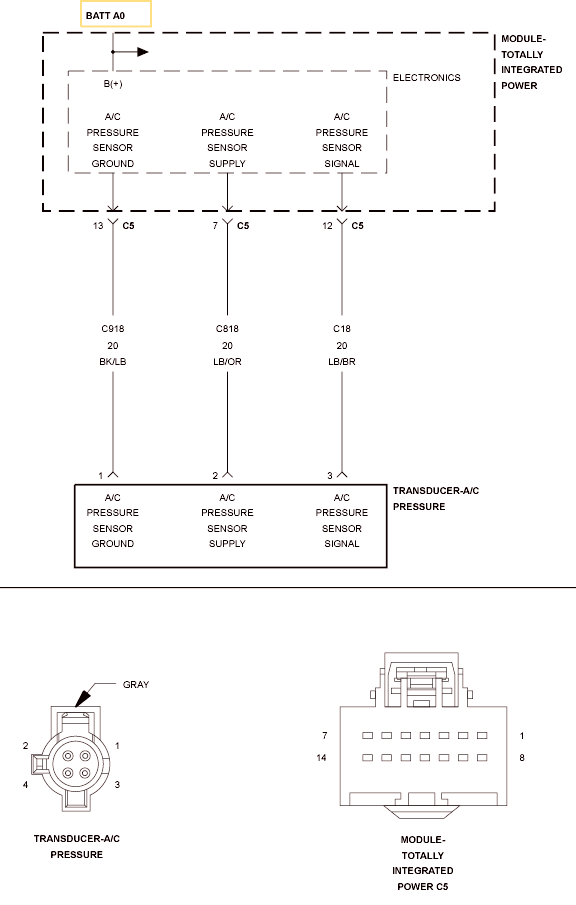

Fig 1: A/C Pressure Sensor Circuit
GC0123855Courtesy of CHRYSLER LLC
