Diagnostic Test

DTC IS ACTIVE
NOTE: Diagnose and repair any system voltage or sensor reference voltage DTCs before continuing with this test.
1. Start the engine and allow it to reach normal operating temperature.
  WARNING: When the engine is operating, do not stand in direct line with the fan. Do not put your hands near the pulleys, belts or fan. Do not wear loose clothing. Failure to follow these instructions may result in possible serious or fatal injury.
2. With the scan tool, select View DTCs.
  Is the status Active for this DTC?

  Yes
  - Go to step 2
  No
  - Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. See DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure
(F856) 5-VOLT SUPPLY CIRCUIT SHORTED TO VOLTAGE

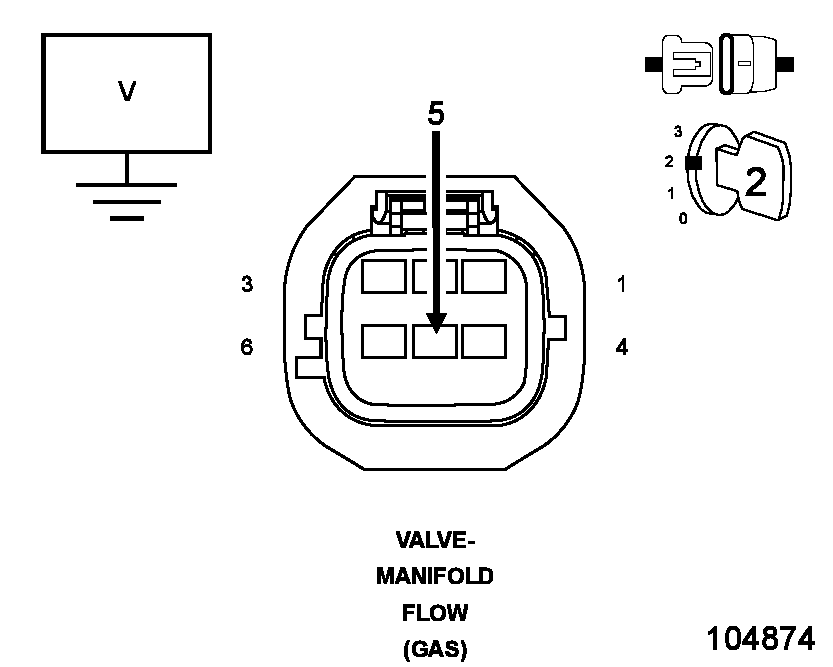

Fig 1: Checking 5-Volt Supply Circuit
Courtesy of CHRYSLER LLC
1. Turn the ignition off.
2. Disconnect the Manifold Flow Valve connector.
3. Disconnect the Powertrain Control Module (PCM) connector.
4. Turn the ignition on.
5. Measure the voltage of the (F856) 5-Volt Supply circuit in the Manifold Flow Valve harness connector.
  Is there any voltage present?

  Yes
  - Repair the (F856) 5-Volt Supply circuit for a short to voltage.
  - Perform the PCM Verification Test. See DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure .
  No
  - Go to step 3
(K602) MFV SIGNAL CIRCUIT SHORTED TO VOLTAGE

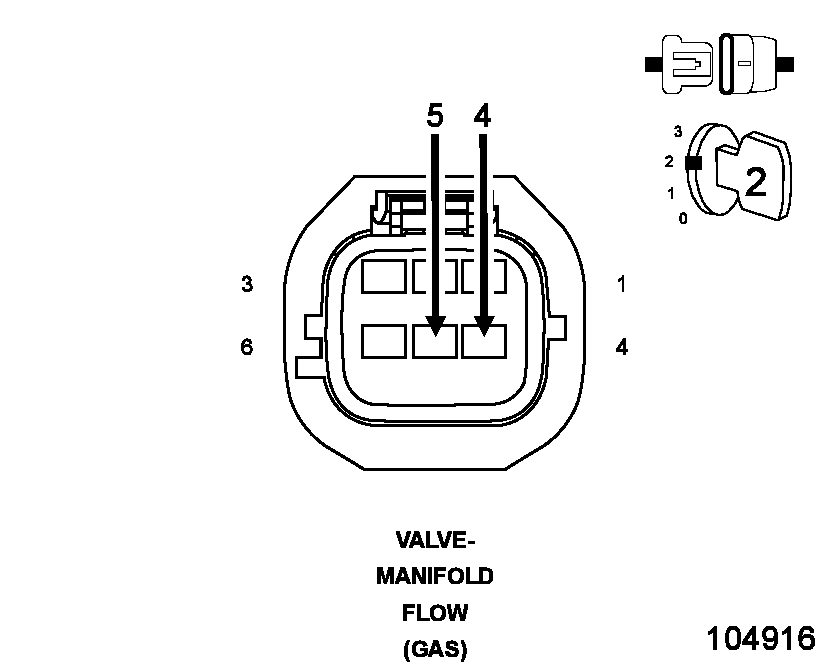

Fig 2: Checking MFV Signal Circuit
Courtesy of CHRYSLER LLC
1. Measure the voltage of the (K602) MFV Signal circuit in the Manifold Flow Valve harness connector.
  Is there any voltage present?

  Yes
  - Repair the (K602) MFV Signal circuit for a short to voltage.
  - Perform the PCM Verification Test. See DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure .
  No
  - Go to step 4
(K602) MFV SIGNAL CIRCUIT SHORTED TO THE (F856) 5-VOLT SUPPLY CIRCUIT

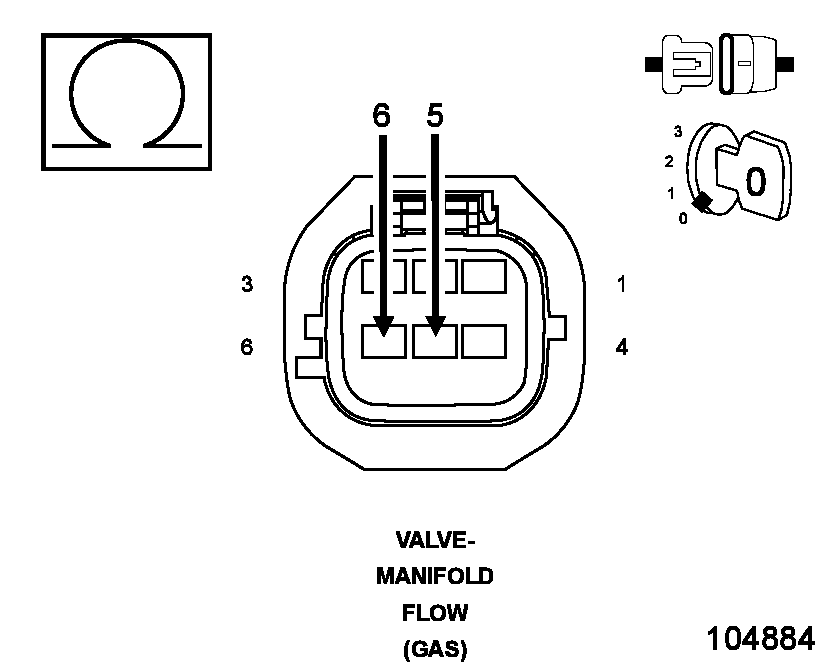

Fig 3: Checking MFV Circuit
Courtesy of CHRYSLER LLC
1. Measure the resistance between the (K602) MFV Signal circuit and the (F856) 5-Volt Supply in the Manifold Flow Valve harness connector.
  Is the resistance below 100 ohms?

  Yes
  - Repair the (K602) MFV Signal circuit for a short to the (F856) 5-Volt Supply circuit.
  - Perform the PCM Verification Test. See DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure .
  No
  - Go to step 5
(K602) MFV SIGNAL CIRCUIT OPEN OR HIGH RESISTANCE

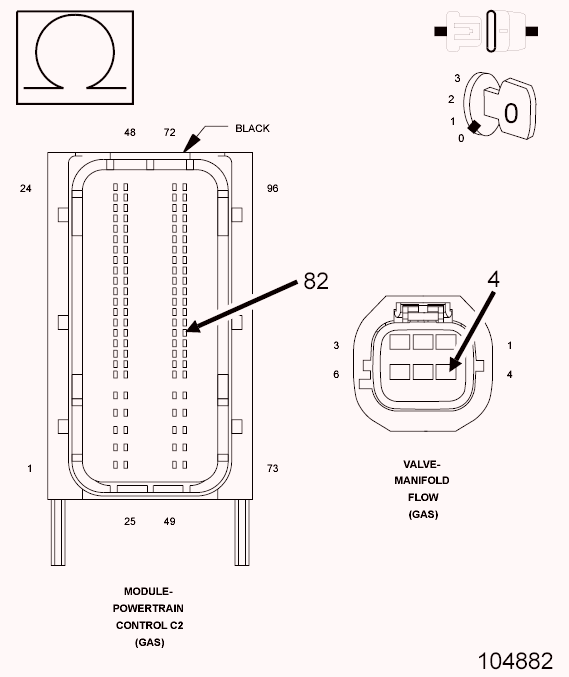

Fig 4: Checking MFV Circuit
Courtesy of CHRYSLER LLC
1. Turn the ignition off.
  NOTE: When checking circuits at the Powertrain Control Module (PCM), be careful not to damage or distort the connector terminals. Improper measurement technique could result in poor pin to terminal contact.
2. Measure the resistance of the (K602) MFV Signal circuit between the Manifold Flow Valve harness connector and the Powertrain Control Module (PCM) harness connector.
  Is the resistance below 5.0 ohms?

  Yes
  - Go to step 6
  No
  - Repair the (K602) MFV Signal circuit for an open circuit or high resistance.
  - Perform the PCM Verification Test. See DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure .
(K900) SENSOR GROUND CIRCUIT OPEN OR HIGH RESISTANCE

Fig 5: Checking MFV Circuit
Courtesy of CHRYSLER LLC

NOTE: When checking circuits at the Powertrain Control Module (PCM), be careful not to damage or distort the connector terminals. Improper measurement technique could result in poor pin to terminal contact.
1. Measure the resistance of the (K900) Sensor Ground circuit between the Manifold Flow Valve harness connector and the Powertrain Control Module (PCM) harness connector.
  Is the resistance below 5.0 ohms?

  Yes
  - Go to step 7
  No
  - Repair the (K900) Sensor Ground circuit for an open circuit or high resistance.
  - Perform the PCM Verification Test. See DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure .
MANIFOLD FLOW VALVE SIGNAL VOLTAGE

Fig 6: Checking Manifold Flow Valve Signal Voltage
Courtesy of CHRYSLER LLC
1. Turn the ignition off.
2. Connect the Powertrain Control Module (PCM) connector.
3. Connect a jumper wire between the (K900) Sensor Ground circuit and the (K602) MFV Signal circuit in the Manifold Flow Valve harness connector.
4. Turn the ignition on.
5. With the scan tool, read the Manifold Flow Valve signal voltage.
  Is the voltage below 1.0 volt with the jumper wire in place?

  Yes
  - Go to step 8
  No
  - Go to step 9
MANIFOLD FLOW VALVE
1. Turn the ignition off.
2. Inspect the wiring and connectors between the Manifold Flow Valve and the Powertrain Control Module (PCM).
3. Look for any chafed, pierced, pinched, or partially broken wires.
4. Look for broken, bent, pushed out or corroded terminals. Verify that there is good pin to terminal contact in the related connectors.
  Were any problems found?

  Yes
  - Repair as necessary.
  - Perform the PCM Verification Test. See DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure .
  No
  - Replace the Manifold Flow Valve in accordance with the Service Information.
  - Perform the PCM Verification Test. See DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure .
POWERTRAIN CONTROL MODULE (PCM)
1. Using the wiring diagram/schematic as a guide, inspect the wiring and connectors between the Manifold Flow Valve and the Powertrain Control Module (PCM).
2. Look for any chafed, pierced, pinched, or partially broken wires.
3. Look for broken, bent, pushed out or corroded terminals.
4. Monitor the scan tool data relative to this circuit and wiggle test the wiring and connectors.
5. Look for the data to change or for the DTC to reset during the wiggle test.
6. Refer to any Technical Service Bulletins that may apply.
  Were any problems found?

  Yes
  - Repair as necessary.
  - Perform the PCM Verification Test. See DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure .
  No
  - Replace and program the Powertrain Control Module (PCM) in accordance with the Service Information.
  - Perform the PCM Verification Test. See DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure .
