P2074-Map/TPS Correlation - High Airflow/Vacuum Leak Detected: Notes

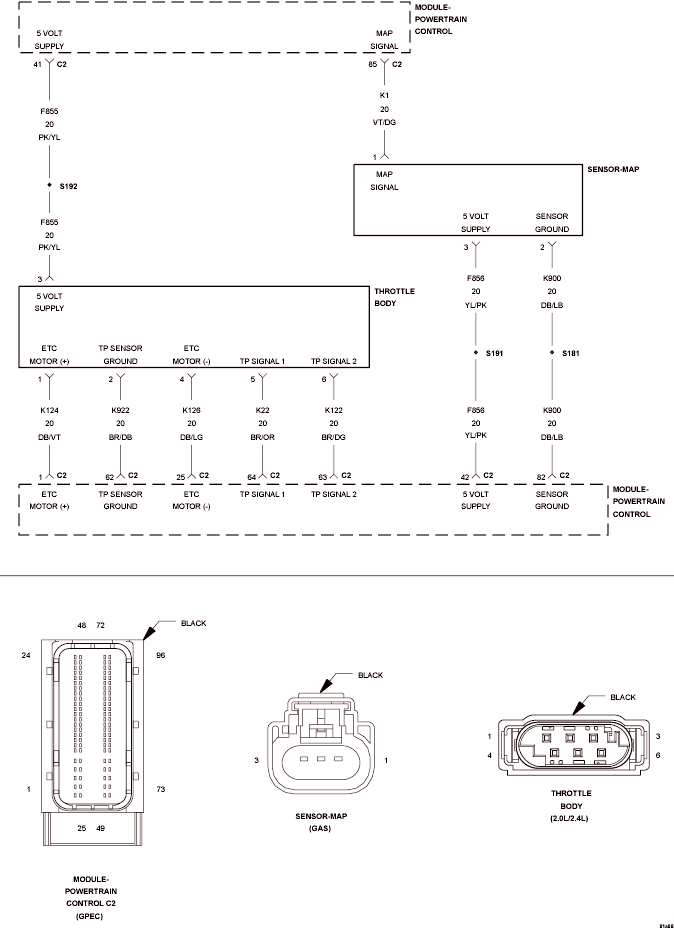

Fig 1: MAP & TP Sensor Circuit
GC0123867Courtesy of CHRYSLER LLC
