Installation

INSTALLATION






NOTE: LHD model shown. RHD model similar.

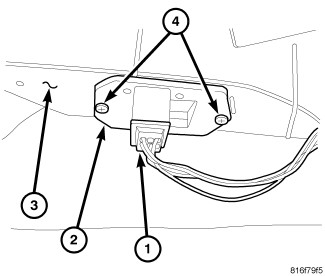

1. Position the blower motor resistor (2) onto the bottom of the HVAC housing (3).
2. Install the two screws (4) that secure the blower motor resistor to the HVAC housing. Tighten the screws to 1.2 Nm (10 in. lbs.).
3. Connect the wire harness connector (1) to the blower motor resistor.
4. If equipped, install the silencer panel and two push-pins.
5. Reconnect the negative battery cable.
