Installation

INSTALLATION






NOTE: The quick connect fitting on the air inlet tube is slotted to fit the air pump housing fitting. Line the slot up when making the connection.

1. Install air inlet tube (3) to air pump housing connection (2). A click noise will indicate a good connection.

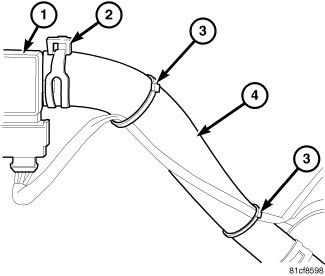

2. Install mass air flow (MAF) sensor (1) and constant tension clamp (2) to air inlet tube (4).
3. Position MAF sensor wiring to air inlet tube (4). Install new tie straps (3) securing the MAF sensor wiring to air inlet tube (4).
