Front

FRONT SENSOR

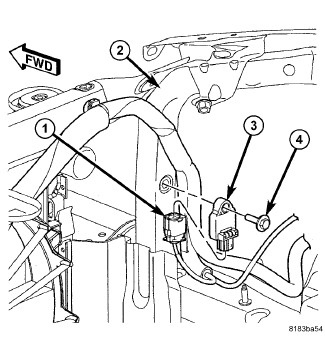

1. Position the front impact sensor (3) into the engine compartment.
2. Connect the electrical connector (1) to the sensor.
3. Position the sensor onto the back of the right or left radiator support vertical member (2).

NOTE: Be certain that the anti-rotation pin on the back of the sensor is engaged in the lower clearance hole of the radiator support.

4. Install and tighten the screw (4) that secures the sensor (3) to the back of the support vertical member (2). Tighten the screw to 8 Nm (71 in. lbs.).

WARNING: Do not connect the battery negative cable Testing and Inspection . Serious or fatal injury may result if the system test is not performed first.
