Output Speed Sensor - Installation

INSTALLATION

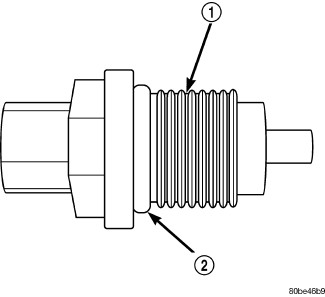

1. Verify O-ring (2) is installed into position.

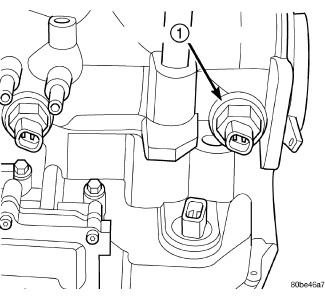

2. Install and tighten output speed sensor (1) to 27 Nm (20 ft. lbs.).










3. Connect output speed sensor connector (3).
4. Connect battery negative cable.
