Generator - Installation

2.7L

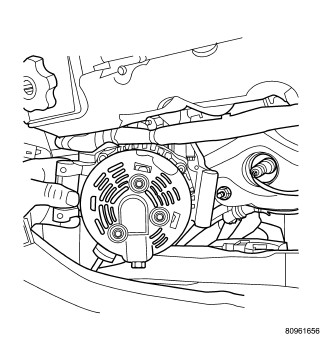

1. Install the generator.
2. Install the 2 upper bolts but do not tighten.

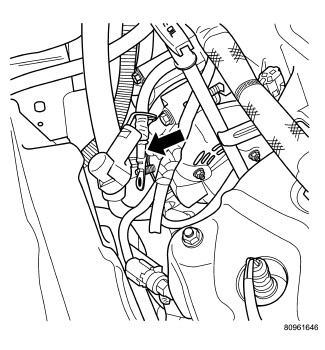

3. Connect the B+ terminal and field connectors.
4. Install the lower bolt and tighten to 27 Nm (20 ft. lbs.).
5. Install the accessory drive belt back on the generator.
6. Tighten the 2 upper mounting bolts to 27 Nm (20 ft. lbs.).
7. Connect the negative battery cable.
