Output Speed Sensor - Installation

INSTALLATION

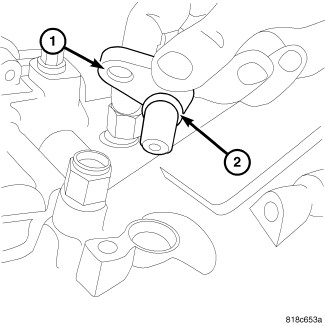

1. Install a new O-ring (2).

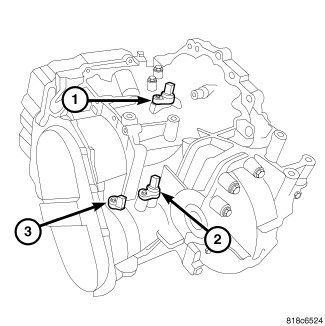

2. Install output speed sensor (2) into case.





3. Install bolt at output speed sensor and tighten to 12 Nm (105 in. lbs.).
4. Engage electrical connector.
