P0627-Fuel Pump Control Circuit
>>
Notes
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
P0627-Fuel Pump Control Circuit: Notes

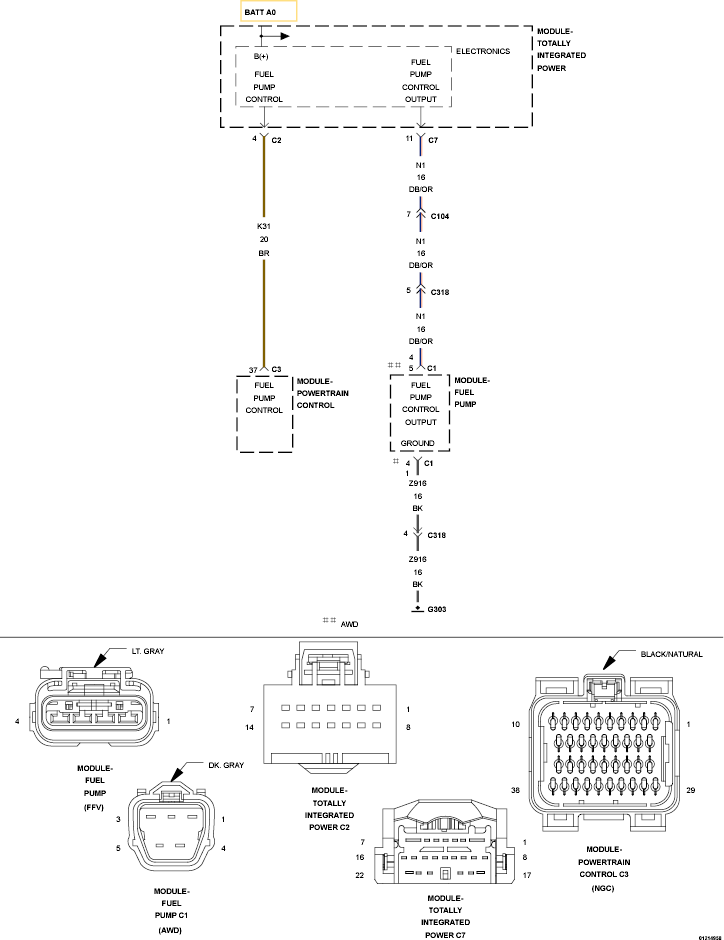

Fig 1: Fuel Pump Control Circuit
Courtesy of CHRYSLER LLC
Courtesy of CHRYSLER LLC
