P0645-A/C Control Circuit/Open
>>
Notes
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
P0645-A/C Control Circuit/Open: Notes

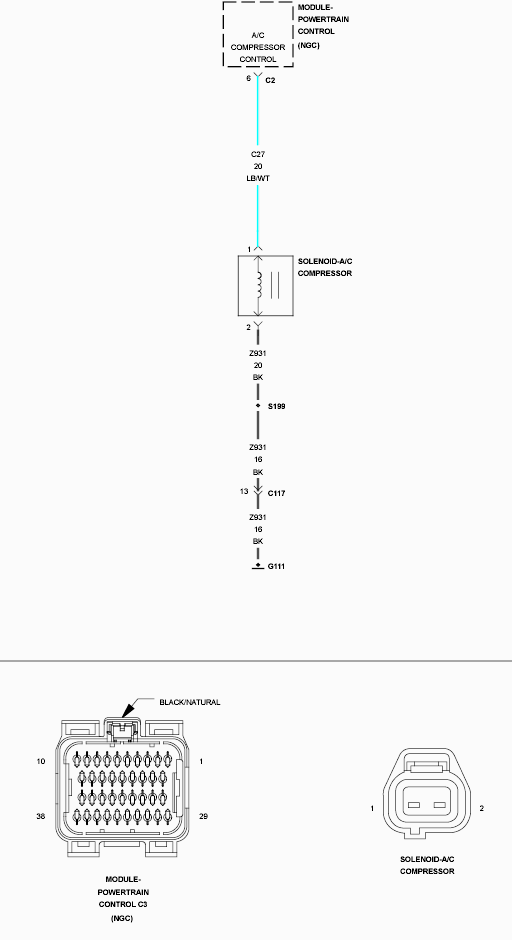

Fig 1: A/C Control Circuit
Courtesy of CHRYSLER LLC
Courtesy of CHRYSLER LLC
