P0685-ASD/Main Control Circuit: Notes

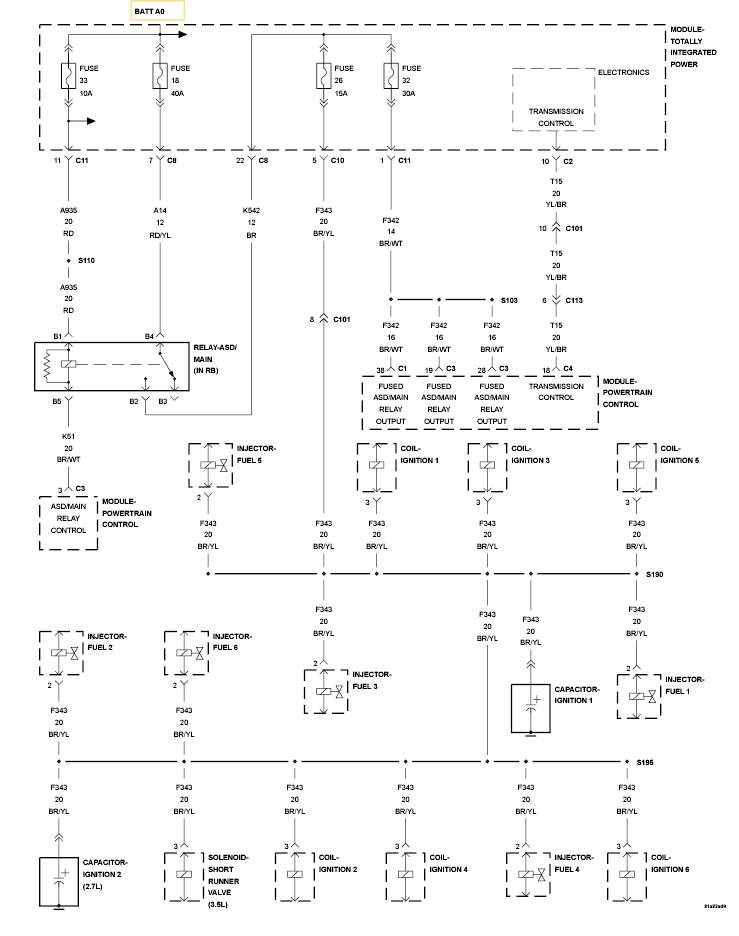

Fig 1: ASD/Main Control Circuit
GC0123941Courtesy of CHRYSLER LLC
