DTCS P0645 To P2008 - NGC
>>
P0703-Brake Switch 2 Performance
>>
Notes
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
P0703-Brake Switch 2 Performance: Notes

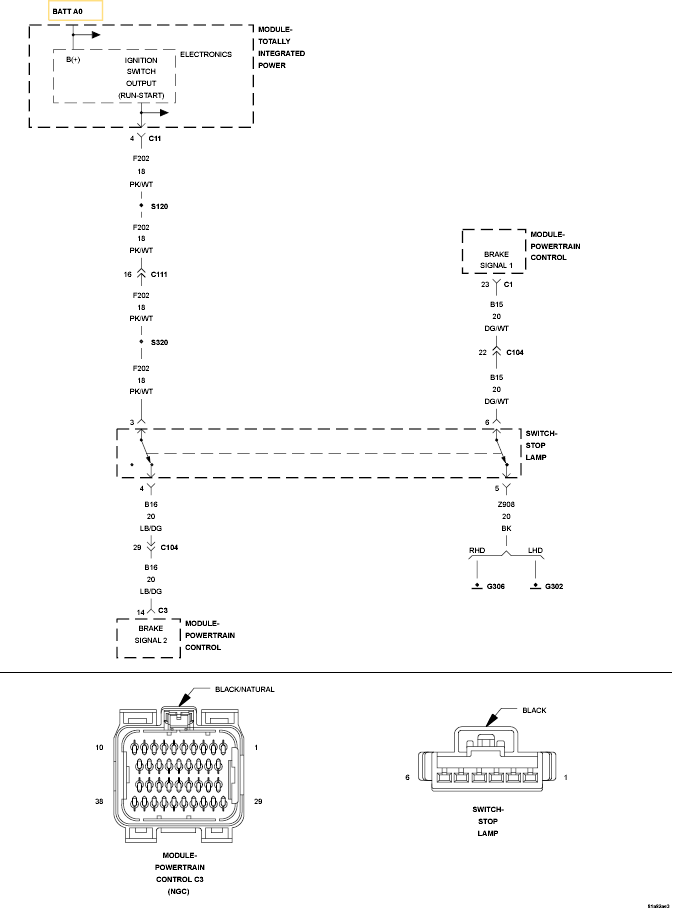

Fig 1: Brake Switch Circuit
Courtesy of CHRYSLER LLC
Courtesy of CHRYSLER LLC
