DTCS P0645 To P2008 - NGC
>>
P1404-EGR Close Position Performance
>>
Notes
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
P1404-EGR Close Position Performance: Notes

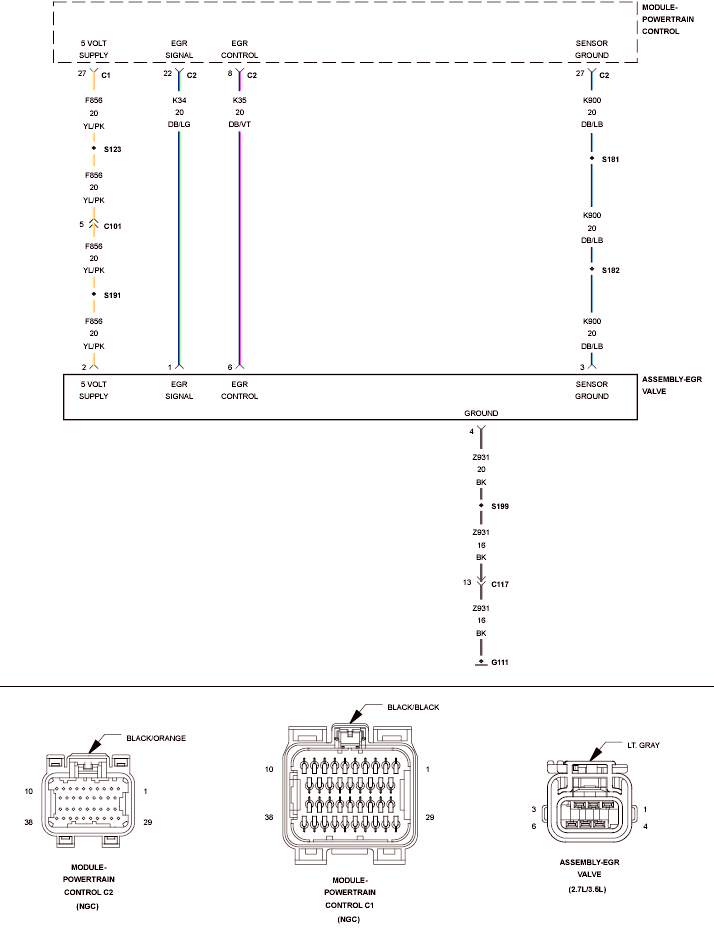

Fig 1: EGR Control Circuit
Courtesy of CHRYSLER LLC
Courtesy of CHRYSLER LLC
