Steering Systems

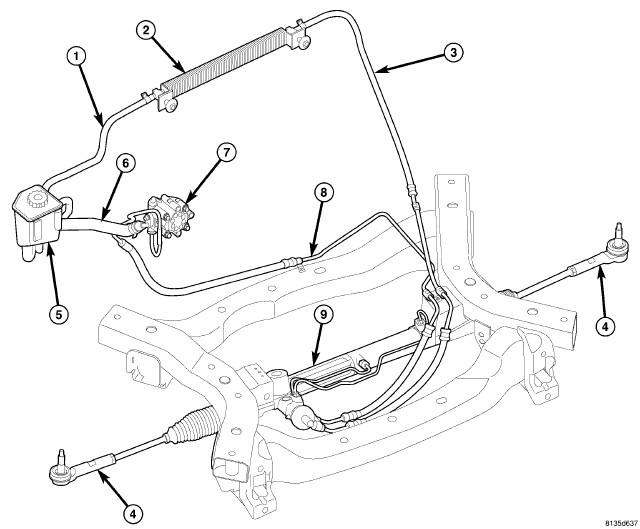

Fig 1: RWD POWER STEERING SYSTEM

Courtesy of CHRYSLER LLC

RWD Power steering systems consist of:

• Steering column
• Rack and pinion steering gear (9)
• Belt driven hydraulic steering pump (7)
• Pump pressure (8), return (1 and 3) and supply (6) hoses
• Oil Cooler (2)
• Remote Reservoir (5)
• Inner and Outer tie rod ends (4)

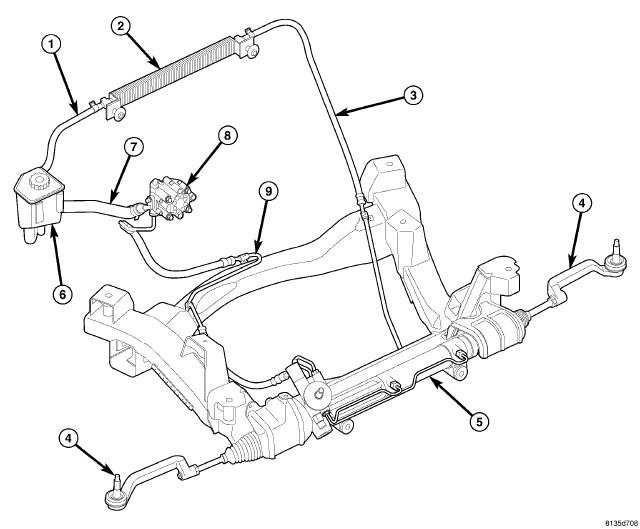

Fig 2: AWD POWER STEERING SYSTEM

Courtesy of CHRYSLER LLC

AWD Power steering systems consist of:

• Steering column
• Rack and pinion steering gear (5)
• Belt driven hydraulic steering pump (8)
• Pump pressure (9), return (1 and 3) and supply (7) hoses
• Oil Cooler (2)
• Remote Reservoir (6)
• Inner and Outer tie rod ends (4)
