Traction Control System

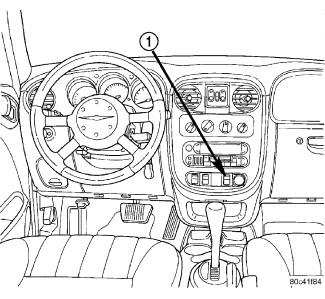

Fig 1: Traction Control Switch Location
GC0114117Courtesy of CHRYSLER LLC
1 - TRACTION CONTROL SWITCH

Traction control reduces wheel slip and maintains traction at the driving wheels at speeds below 64 km/h (40 mph) when road surfaces are slippery. The traction control system reduces wheel slip by braking the wheel that is losing traction.

The traction control system may be turned off or on by depressing the traction control switch button located on the instrument panel.
