P0551-Power Steering Pressure Switch Performance
>>
Notes
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
P0551-Power Steering Pressure Switch Performance: Notes

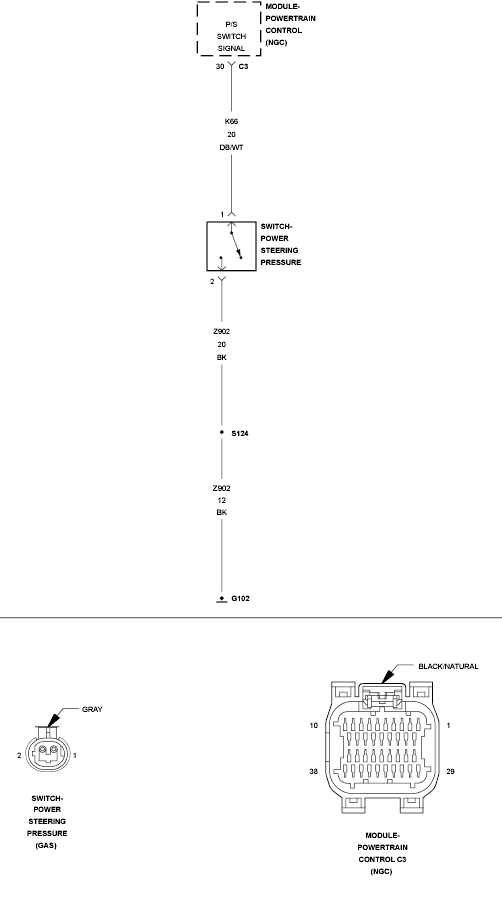

Fig 1: Power Steering Pressure Switch Circuit
Courtesy of CHRYSLER LLC
Courtesy of CHRYSLER LLC
