Module, Engine Control: Removal: Removal

WARNING: This page is about a different car, the 2009 Chrysler PT Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

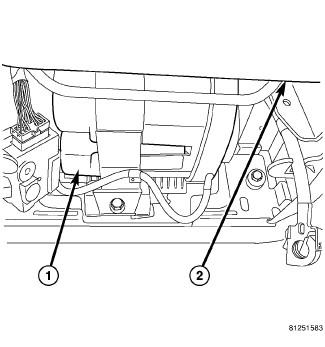

Fig 1: Battery Location

Courtesy of CHRYSLER LLC

1 - BATTERY

2 - PASSENGER SEAT

Disconnect negative battery (1) cable.

Remove air cleaner housing assembly. Refer to Engine/Air Intake System/BODY, Air Cleaner - Removal .

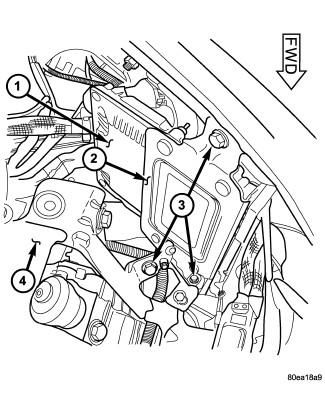

Fig 2: ECM Location

Courtesy of CHRYSLER LLC

1 - ECM

2 - ECM BRACKET

3 - RETAINING BOLTS

4 - AIR CLEANER HOUSING MOUNTING BRACKET

Disconnect both ECM electrical connectors by pulling tabs at ends of connectors.
Remove ECM bracket (2) retaining bolts (3) and remove ECM and bracket (2) assembly from vehicle. See Fig 2.

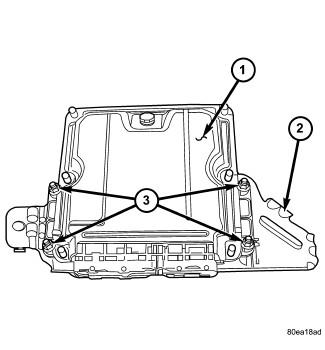

Fig 3: ECM & Bracket Assembly
Courtesy of CHRYSLER LLC

1 - ECM

2 - ECM BRACKET

3 - RETAINING NUTS
Remove ECM to bracket retaining nuts (3) and remove ECM (1) from bracket (2). See Fig 3.
