Module, Gateway: Installation: Installation
WARNING: This page is about a different car, the 2009 Chrysler PT Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

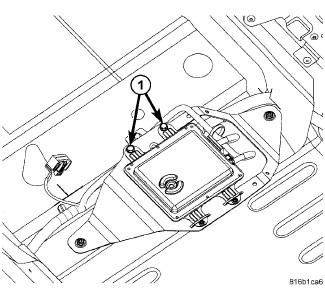

- Install the Gateway module into the mounting brackets.
- Connect the electrical connectors.
- Install mounting bolts (1).
- Connect the battery negative cable.
- Program the Gateway. Refer to Electrical/Vehicle Theft Security - Standard Procedure .
