Installation

INSTALLATION

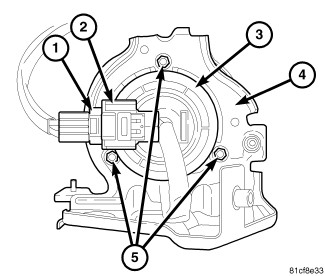

1. Install air pump (3) to bracket (4).
2. Install air pump mounting nuts (5) to bracket (4). Tighten the nuts to 8 Nm (71 in. lbs.).
3. Connect electrical harness connector (1) to the air pump electrical connector (2).

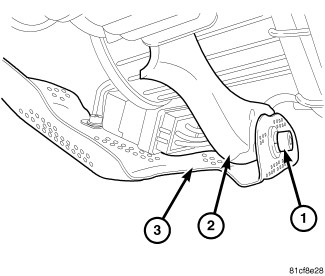

4. Install heat shield (3) and bolt (1) to air pump bracket (2). Tighten the bolt to 8 Nm (71 in. lbs.).

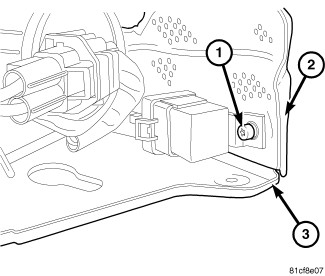

5. Install relay, heat shield (2) and bolt (1) to air pump bracket (3). Tighten the bolt to 8 Nm (71 in. lbs.).

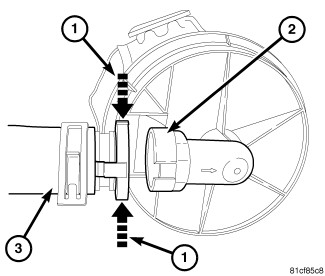

NOTE: The quick connect fitting on the air inlet tube is slotted to fit the air pump housing fitting. Line the slot up when making the connection.

6. Install air inlet tube (3) to air pump housing connection (2). A click noise will indicate a good connection.
7. Connect the negative battery cable, tighten the nut to 5 Nm (45 in. lbs.).
