Installation

INSTALLATION

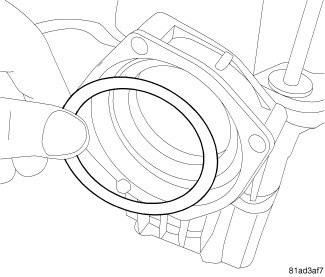

1. Install o-ring.

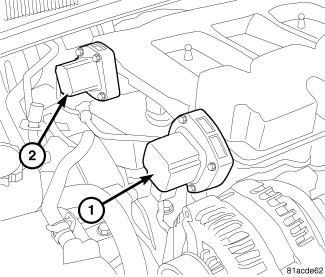

2. Align tab on valve to slot in manifold and install.
3. Install mounting screws.
4. Tighten bolts to 2.8 Nm (25 in. lbs.).
5. Connect electrical connector and lock.
6. Install engine cover.
7. Connect negative battery cable.
