Output Speed Sensor - Installation
INSTALLATION

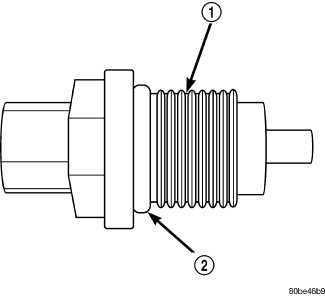

1. Verify O-ring (2) is installed into position.

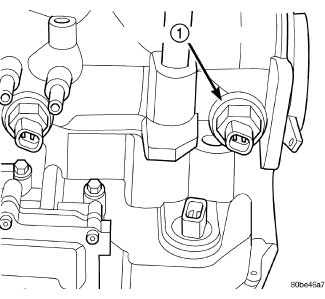

2. Install and tighten output speed sensor (1) to 27 Nm (20 ft. lbs.).

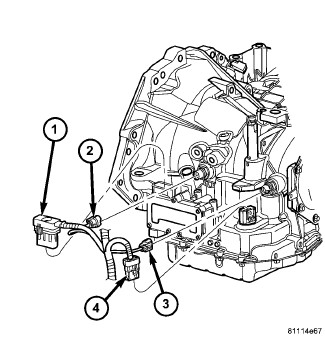

3. Connect output speed sensor connector (3).
4. Connect battery negative cable.
INSTALLATION
1. Verify O-ring (2) is installed into position.
2. Install and tighten output speed sensor (1) to 27 Nm (20 ft. lbs.).
3. Connect output speed sensor connector (3).
4. Connect battery negative cable.
