Removal And Installation: Installation

WARNING: This page is about a different car, the 2015 Jeep Renegade. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Automatic A/C heater control shown in illustration, manual A/C heater control similar.

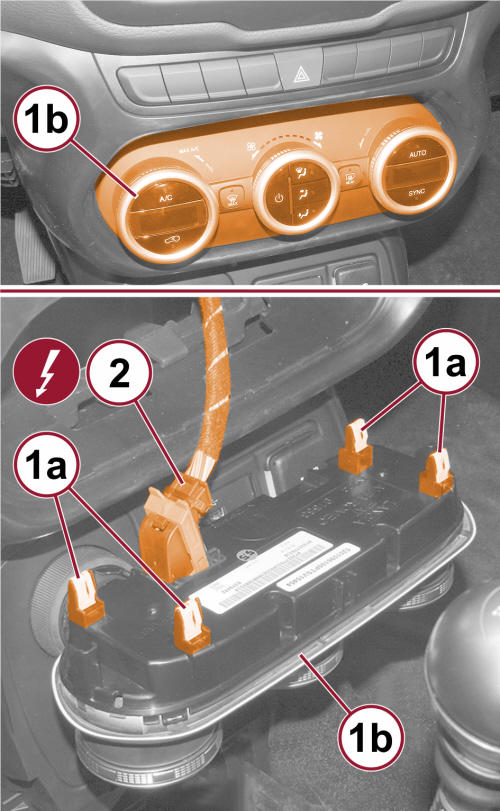

Fig 1: A/C Heater Control, Retaining Clips & Connector

Courtesy of CHRYSLER GROUP, LLC

Position the A/C heater control (1b) to the instrument panel and connect the HVAC wire harness connector (2).
Align the four retainers (1a) of the A/C heater control (1b) with the instrument panel and press into place. Be certain all four retainers (1a) are fully engaged with the instrument panel.
Install the radio. Refer to RADIO, REMOVAL AND INSTALLATION .
Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.
Initiate the Actuator Calibration function using a scan tool. Refer to STANDARD PROCEDURE .
NOTE:
If this Electronic Control Unit (ECU) is being replaced with a new unit, a diagnostic scan tool MUST be used to align the PROXI configuration data into the new ECU. Follow the routine outlined in the diagnostic scan tool for PROXI Configuration Alignment under Body Control Module (BCM) Miscellaneous Functions menu.
