Removal And Installation: Removal

WARNING: This page is about a different car, the 2015 Jeep Renegade. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the engine cover. For 1.4L, refer to COVER, ENGINE, REMOVAL AND INSTALLATION . For 2.4L, refer to COVER, ENGINE, REMOVAL AND INSTALLATION .
  2. Remove the battery tray. Refer to TRAY, BATTERY, REMOVAL AND INSTALLATION .
  3. Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
  4. Remove the left front wheel and tire assembly. Refer to REMOVAL AND INSTALLATION .

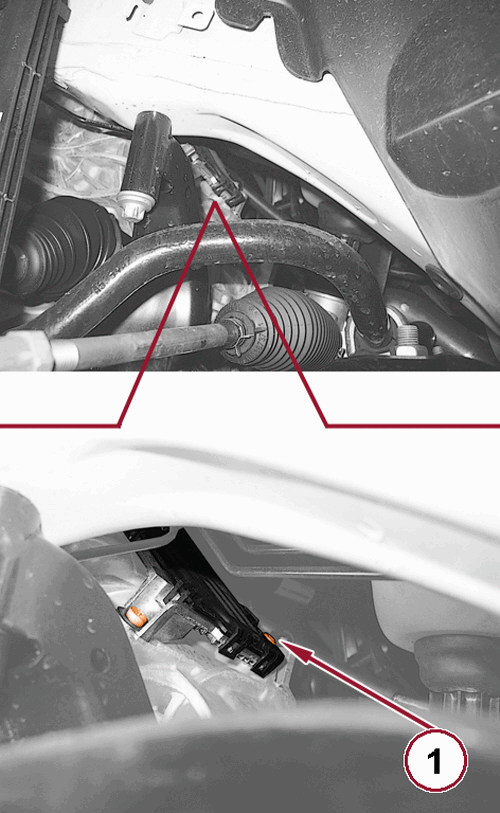

    Fig 1: Transmission Control Module Lower Mounting Bolts
    GC0169407Courtesy of CHRYSLER GROUP, LLC
  5. Remove the two lower Transmission Control Module (TCM) mounting bolts (1).
  6. Lower the vehicle.

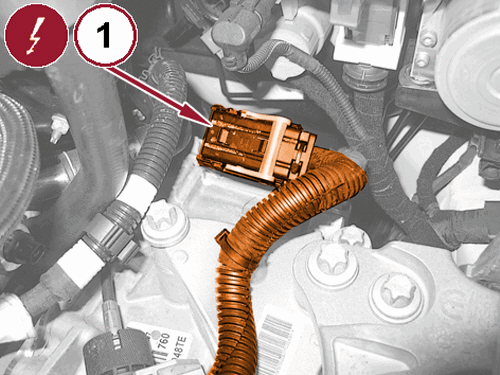

    Fig 2: Transmission Control Module Connector
    GC0169274Courtesy of CHRYSLER GROUP, LLC
  7. Disconnect the TCM wire harness connector (1).

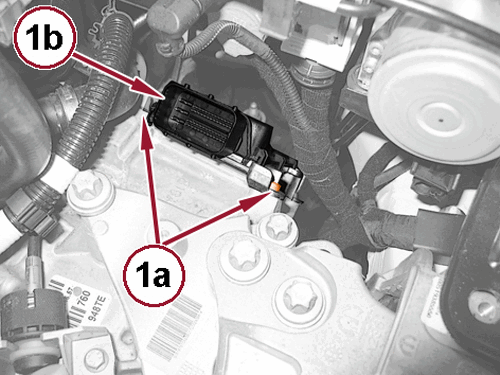

    Fig 3: Transmission Control Module Upper Mounting Bolts
    GC0169153Courtesy of CHRYSLER GROUP, LLC
  8. Remove the two upper TCM mounting bolts (1a).
  9. Remove the TCM (1b) from the vehicle.
