Ignition Capacitor - Removal

5.7L





1. Disconnect and isolate the negative battery cable (1).

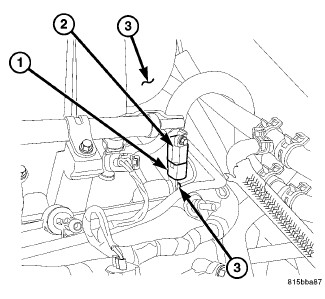

The ignition capacitor (2) is attached to the rear of the left cylinder head (3).

2. Disconnect the ignition capacitor (2) electrical connector (1).
3. Remove the retaining bolt and remove ignition capacitor (2).
