Satellite Video Module - Installation






INSTALLATION

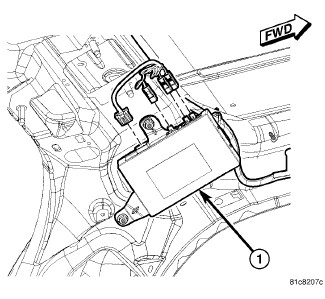

1. Install the module and install the video module mounting fasteners.
2. Connect the electrical connectors.
3. Install the left upper D pillar trim panel. D-Pillar Trim Panel - Installation.
4. Connect the battery negative cable.
