Power Lock Switch - Removal






REMOVAL

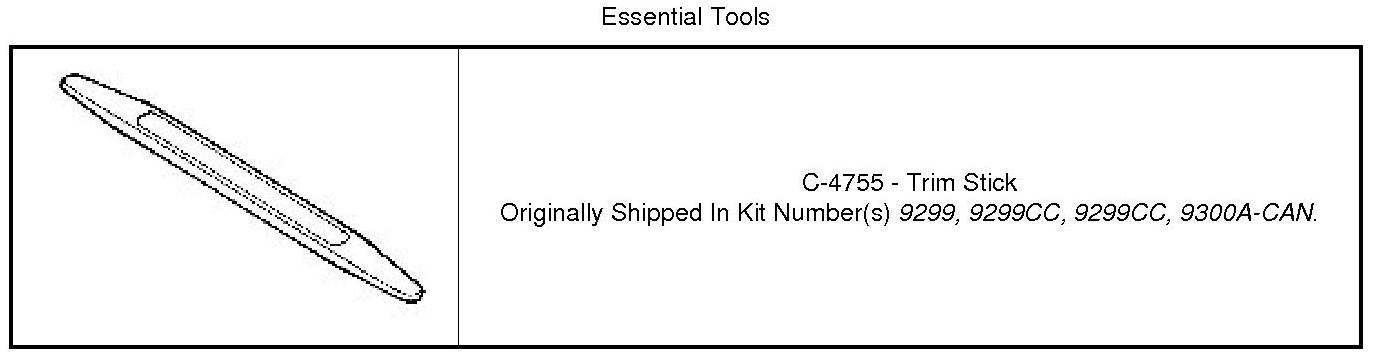

Special Tools:






1. Disconnect and isolate the battery negative remote cable.
2. Remove door trim panel Front Door Trim Panel - Removal.
3. Disconnect switch wire connector.
4. Remove switch using a trim stick (special tool #) or equivalent.
