Variable Displacement A/C Compressor

VARIABLE DISPLACEMENT A/C COMPRESSOR

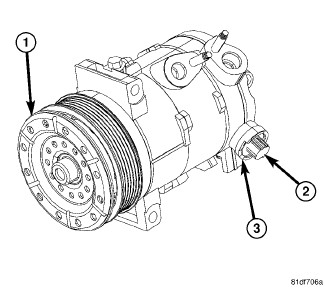

2.4L 5-passenger models use a Denso 6SEU16 clutchless, variable displacement swashplate type A/C compressor (1). This A/C compressor has a total displacement of 160 cubic centimeters (9.7 cubic inches) and a control valve (2) and a high pressure relief valve (3) located on the back cover. The A/C compressor is secured to the engine with three bolts.

A label identifying the use of R-134a refrigerant and ND-8 PAG oil is located on the A/C compressor.
