DRAINCOCK, Radiator: Installation: Installation

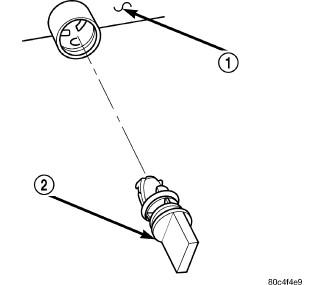

Fig 1: Draincock

Courtesy of CHRYSLER GROUP, LLC

1 - RADIATOR TANK

2 - DRAINCOCK

1. Align draincock stem to radiator tank opening.
2. Push draincock into the radiator tank opening.
3. Tighten the draincock by turning clockwise until it stops.
4. Fill the cooling system. Refer to STANDARD PROCEDURE .
