Switch, Ignition: Installation: Installation

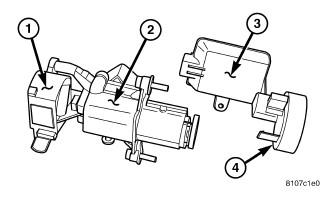

Fig 1: SKREEM Positioning

Courtesy of CHRYSLER GROUP, LLC

If removed, install the ignition switch (1) to the ignition key cylinder (2).
If removed, install the Sentry Key Immobilizer (SKREEM) module (3) to the ignition key cylinder (2).
To install the ignition switch, follow the procedure to install the SKREEM module. Refer to MODULE, SENTRY KEY IMMOBILIZER (SKREEM), INSTALLATION .
Connect the negative battery cable.
