Installation

3.6L





1. The manifold air pressure (MAP) sensor O-ring (1) can be reused if not damaged.
2. Apply a small amount of engine oil to the sensor O-ring (1).

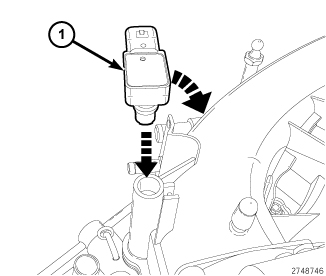

3. Install the MAP sensor (1) into the upper intake manifold and rotate 1/4 turn clockwise.

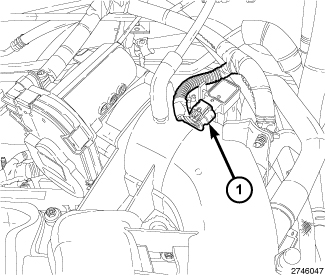

4. Connect and lock the electrical connector (1) to the sensor.





5. Install the engine cover (1).
6. Connect the negative battery cable and tighten nut to 5 Nm (45 in. lbs.).
