Telematics Gateway Module - Installation

INSTALLATION






NOTE: Mid level shown, base similar.

1. Position the Telematics Gateway Module (TGM) close to the instrument panel to connect the electrical connectors.

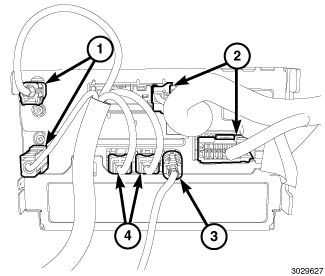

2. If equipped, connect the antenna(s) (1), RF HUB and UCI cables (4), video cable (3) and wiring connectors (2) to the TGM.

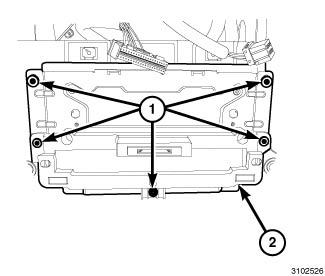

3. Install the TGM (2) retainers (1).
4. Install the switch bank Instrument Cluster Switch Pod - Installation.

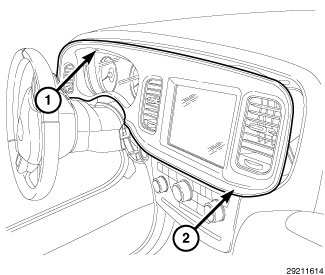

5. Install the instrument cluster bezel Instrument Cluster Bezel - Installation.
6. Connect the negative battery cable.
